SLC440COM-E-1770-30, Schmersal SLC440COM Series 440COM Light Curtain Sender, 88 Beam(s), 30mm Resolution, Световые завесы

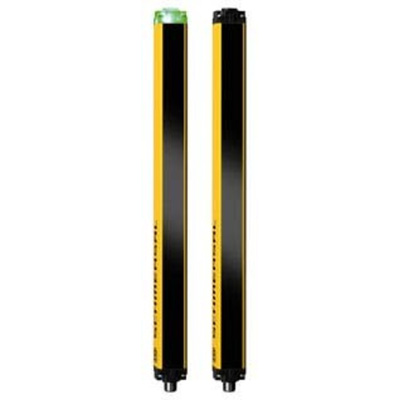

Schmersal Light Curtain, Sender, 1,770mm Protection Field Height - SLC440COM Series - SLC440COM-E-1770-30

This light curtain sender from Schmersal sends light beams to a receiver to detect the presence of personnel in hazardous areas. It automatically shuts off the machine if it senses an operator in the detection zone, helping to prevent injury. This versatile component has a broad scanning range between 300 and 10,000mm, which means you can use it for both short-range and long-range detection. A wide operating temperature range between -10°C and +50°C means you can safely use this unit in challenging environments.

Features & Benefits

• Beam resolution of 30mm to effectively detect large body parts
• IP67 rating indicates it's dustproof and protected against immersion in 1m of water for up to 30 minutes
• Tough aluminium body resists corrosion for an extended service life
• Maximum reaction time of 20ms for a quick response

Applications

• Assembly plants
• Aviation engineering
• Safety systems

How long will this light curtain sender last?

This light curtain sender has a mission time of 20 years, which means you can rely on it for long-term performance.

How do I reset this light curtain?

This device comes with a restart interlock that lets you reset it after each operation for ease of use.

Datasheet

Datasheet - Schmersal Optoeletronic Safety Guards

Instruction Sheet - Safety Light Curtain / Safety Light Grid

Datasheet - SLC440COM-E-1770-30
