SLC440COM-R-0810-14, Schmersal SLC440COM Series 440COM Light Curtain Receiver, 80 Beam(s), 14mm Resolution, Световые завесы

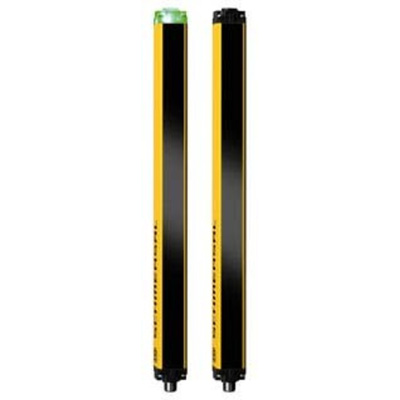

Schmersal Light Curtain, Receiver, 810mm Protective Height - SLC440COM Series - SLC440COM-R-0810-14

This light curtain receiver from Schmersal will help shield your employees from workplace injuries. Its beam resolution of 14mm means it can detect small body parts like fingers, so it will shut your equipment down if personnel get too close to dangerous machinery. Its housing is made of aluminium for resistance to corrosion, making it suitable for use in harsh environments. An IP67 rating means it's protected against dust and immersion in 1m of water for up to 30 minutes.

Features & Benefits

• Broad operating temperature range of -10°C to +50°C for use in demanding conditions
• Supply voltage of 24V DC for use in low-voltage applications
• Meets IEC 61496-1 standards for electro-sensitive protective equipment
• Compact dimensions of 33 (length) x 27.8 (width) x 851mm (height) for easy installation in tight areas

Applications

• Pallet loaders
• Elevators and escalators
• Automatic processing plants
• Packaging warehouses

What's the scanning range of this light curtain receiver?

This light curtain receiver has a wide scanning range of 300 to 7000mm, which makes it ideal for use with both large and small machines.

Datasheet

Datasheet - Schmersal Optoeletronic Safety Guards

Instruction Sheet - Safety Light Curtain / Safety Light Grid

Datasheet - Series SLC440COM
