SLC440COM-R-1930-30, Schmersal SLC440COM Series 440COM Light Curtain Receiver, 96 Beam(s), 30mm Resolution, Световые завесы

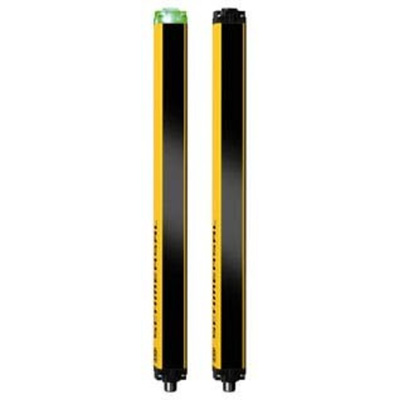

Schmersal Light Curtain, Receiver, 1930mm Protective Height - SLC440COM Series - SLC440COM-R-1930-30

To prevent injuries from dangerous machinery, choose this light curtain receiver from Schmersal. It works with a transmitter to create a light barrier that monitors the area around your machine. If a person or object moves through the detection zone, the unit shuts down your equipment to prevent injury to personnel. Thanks to its IP67 rating, it's dust-tight and protected against submersion in 1m of water for up to 30 minutes, making it suitable for use in demanding environments.

Features & Benefits

• Aluminium housing for resistance to corrosion
• Integral diagnostics for ease of troubleshooting
• Wide operating temperature range between -10°C and +50°C for use in challenging environments
• Beam resolution of 30mm to detect body parts like hands
• Compact dimensions of 33 (length) x 27.8 (width) x 1971mm (height) to add minimal bulk to your setup

Applications

• Power-driven machines
• Industrial automation
• Material handling equipment
• Packaging lines

What's the protection field range of this light curtain receiver?

This light curtain receiver has a wide protection field range of 300 to 10,000mm, so it's suitable for monitoring both small and large areas.

Datasheet

Datasheet - Schmersal Optoeletronic Safety Guards

Instruction Sheet - Safety Light Curtain / Safety Light Grid

Datasheet - Series SLC440COM
