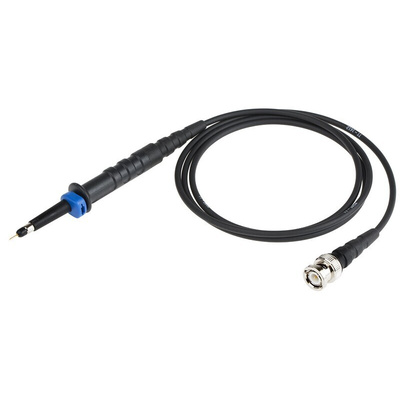

RS PRO Oscilloscope Probe, Passive Type, 150MHz, 1:10, BNC Connector, Щупы для осциллографа

RS PRO Oscilloscope Probes

The RS PRO passive oscilloscope probe is ergonomically designed and is suitable for use with all the major brands of oscilloscopes as well as our range. This probe does not require a power supply or batteries. Hence it is lightweight and easily portable. It comes with a fixed 10:1 attenuation, bandwidth up to 150MHz and is designed for measurements up to 600V.
Contents
LF Oscilloscope Probe
Protective caps
BNC adapter
Spring hook tip
Spare probe tip
Grounding lead terminated with insulated crocodile clip
Trimmer tool
Probe Options:
RS - LF 212
Note:
All the products in this range are supplied for use with instruments with a permanent earth connection.

Features and Benefits

Bandwidth is DC to 150MHz
Attenuation ratio is 10:1
Input impedance is 10Mohmll 14pF
Rise time is 2.3nS
Maximum common mode input voltage is ±20V
10:1 max. input voltage is 600V CAT I (VDC + Peak AC)

Certifications

CAT I
