RS PRO Oscilloscope Probe, Passive Type, 300MHz, 1:100, BNC Connector, Щупы для осциллографа

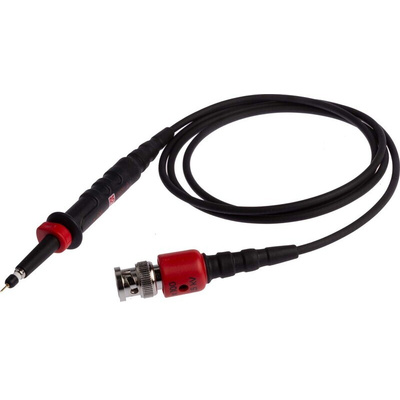

RS PRO Oscilloscope Probe

The RS PRO passive oscilloscope probe is ergonomically designed and is suitable for use with all the major brands of oscilloscopes as well as our range. This probe does not require a power supply or batteries. Hence it is lightweight and easily portable. It comes with a fixed 100:1 attenuation, bandwidth up to 300MHz and is designed for measurements up to 1500V.
Probe Options:
RS – HV 150
Note
All the products in this range are supplied for use with instruments with a permanent earth connection.
Contents

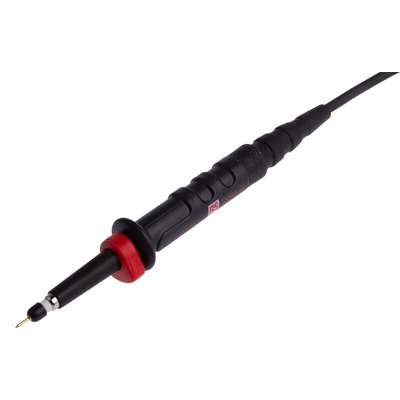

HV Oscilloscope Probe
Protective caps

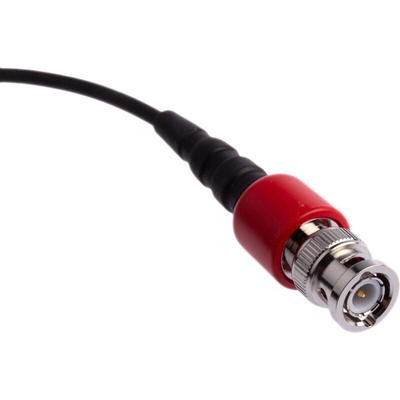

BNC adapter
Spring hook tip
Spare probe tip
Grounding lead terminated with insulated crocodile clip
Trimmer tool

Features and Benefits

Bandwidth is DC to 300MHz
Attenuation ratio is 100:1
Input impedance is 100Mohmll 4pF
Rise time is 1.2nS
Maximum common mode input voltage is ±1.5V
100:1 max. input voltage is 1500V CAT I (VDC + Peak AC)

Certifications

CAT I
