RACT09-350, Recom LED Driver, 13 → 26V dc Output, 9W Output, 350mA Output, Constant Current Dimmable, Драйвер светодиодов

RECOM LED Driver, TRIAC Operation, 1W Power Dissipation - RACT09 Series - RACT09-350

Deliver a dependable power supply to your LED lights with this driver from RECOM. It's a constant-current type of LED driver that gives you a reliable output of 350mA. There's an adjustable output voltage between 13 and 26V DC and a TRIAC dimming operation. This means you have flexible and precise control over your lighting with a 1 to 100% dimming range. Use this driver with leading-edge or trailing-edge dimmers to build concealed lighting into shelves and cabinets or create illuminated advertising and information boards.

Features & Benefits

• Double insulation means it doesn't need earthing

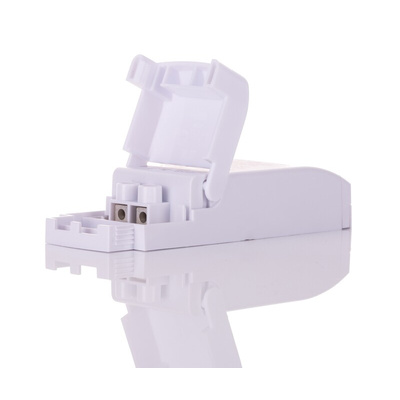

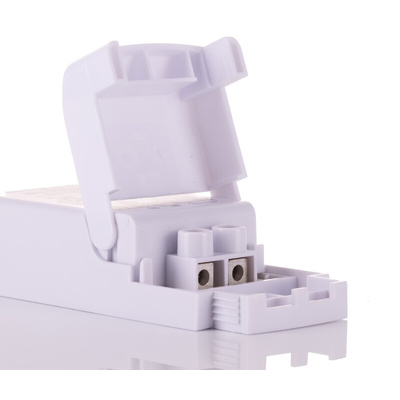

• Screw terminals and cable clamps to make installation quick and secure
• Finger-proof enclosure with an IP20 rating to help keep users safe from electrical wiring
• Wide operating temperature range between -20°C and +50°C for use in demanding environments

Applications

• Shop fitting
• Furniture manufacturing
• Public buildings
• Advertising

How efficient is this LED driver?

This LED driver has a minimum efficiency of 80% at the rated load and a power dissipation of 1W to help minimise energy wastage.

Datasheet

Installation Sheet - RACT09-350
