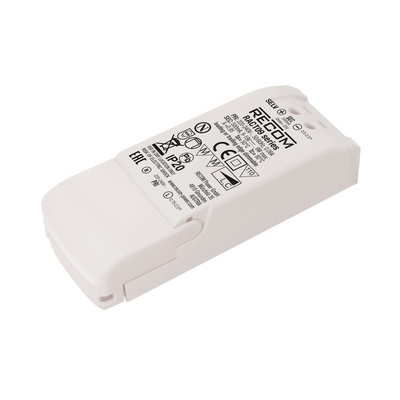

RACT09-700, Recom LED Driver, 7 → 13V dc Output, 9W Output, 700mA Output, Constant Current Dimmable, Драйвер светодиодов

RECOM LED Driver, 264V AC Maximum Input Voltage, 70g Weight - RACT09 Series - RACT09-700

Brighten up every day with this 9W LED driver from RECOM. When supplied with 198 to 264V AC, this handy device will deliver 700mA to your LED lights at an output voltage between 7 and 13V DC. This steady supply stops your bulbs from flickering and cuts the risk of overheating caused by excess current. To help you set the mood, this unit supports TRIAC dimming. It also handles the heat of industrial use, thanks to its wide operating temperature range between -20°C and +50°C.

Features & Benefits

• IP20 rating for protection from touch by fingers and objects larger than 12mm
• Design lifetime greater than 30,000 hours when operated at +25°C, so it's highly reliable
• Compact dimensions of 109 (L) x 40 (w) x 22mm (H) for discreet mounting in display furniture or shelving

Applications

• Underwater lighting systems
• Monitors and televisions
• Downlights

Can I use this unit in humid environments?

Yes, you can. This LED driver has a wide operating humidity range between 5 and 85% RH, so it functions in areas where high levels of non-condensing water vapour are common.
