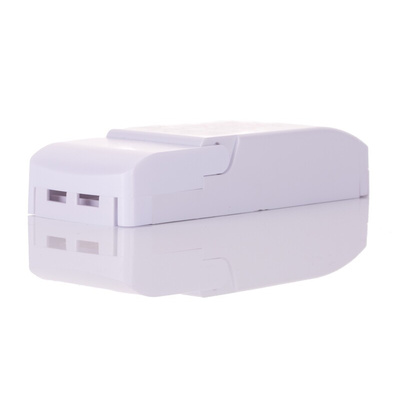

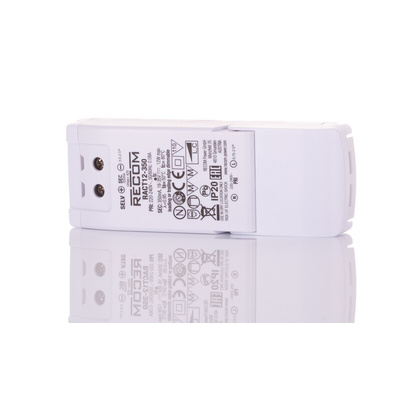

RACT12-350, Recom LED Driver, 18 → 35V dc Output, 12W Output, 350mA Output, Constant Current Dimmable, Драйвер светодиодов

RECOM LED Driver, 198 to 264V AC Input, 1W Power Dissipation - RACT12 Series - RACT12-350

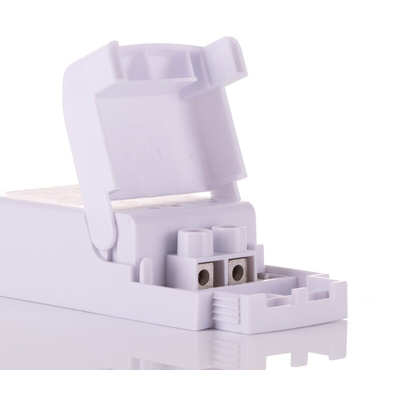

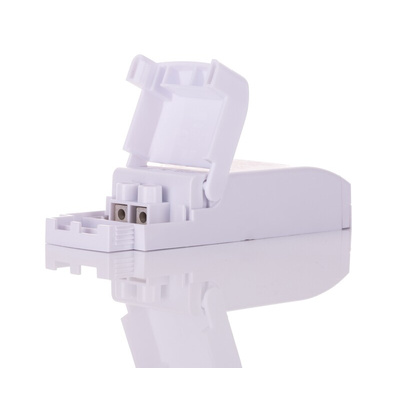

Power your LED light installations with this driver from RECOM. It maintains a constant current of 350mA to help keep your electric circuit and lights working safely and reliably. Thanks to an adjustable output voltage between 18 and 35V DC and a phase-angle function, it works with leading-edge and trailing-edge dimmers to adjust the brightness of your LEDs. The driver is double insulated, so it doesn't need earthing. It comes with screw terminals and cable clamps to keep your wiring secure.

Features & Benefits

• 1 to 100% dimming range to give you precise control over low and bright lighting levels
• Minimum efficiency of 81% at the rated load and 1W power dissipation to help minimise energy wastage
• IP20 rating means it's finger-proof to improve your safety during installation
• Compatible with input voltages between 198 and 264V AC for versatility

Applications

• Kitchen fitting
• Furniture manufacturing
• Electrical assembly
• Retail and advertising displays

What environments are suitable for this LED driver?

This LED driver is suitable for indoor installation. A wide operating temperature range between -20°C and +50°C means it's safe to use in demanding conditions.

Datasheet

Installation Sheet - RACT12-350
