RACT18-500, Recom LED Driver, 18 → 36V dc Output, 18W Output, 500mA Output, Constant Current Dimmable, Драйвер светодиодов

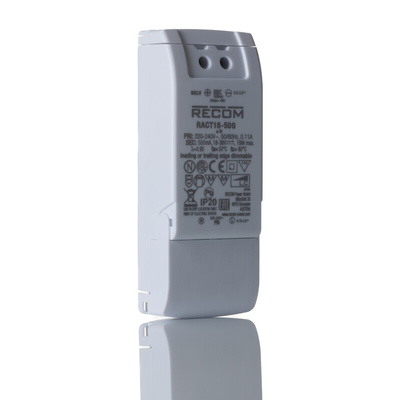

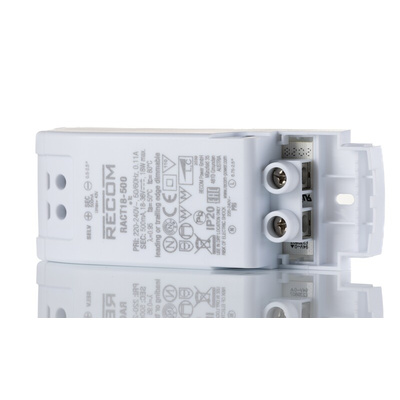

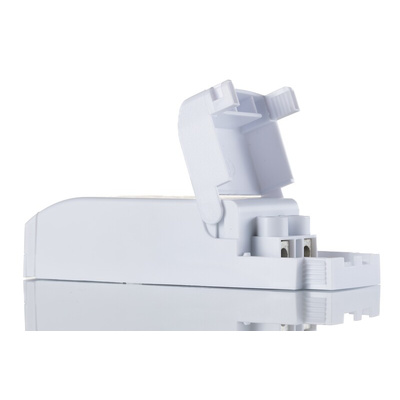

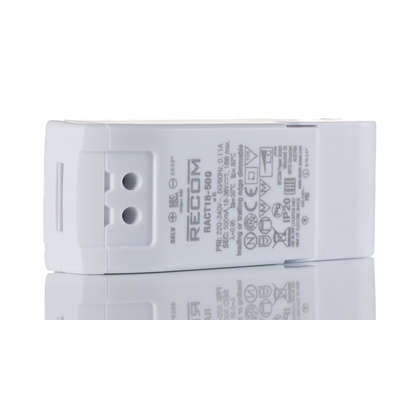

RECOM LED Driver, Constant Current Operation, 1W Power Dissipation - RACT18 Series - RACT18-500

Lower the lights and set the mood with this LED driver from RECOM. It's triac-dimmable, meaning it controls brightness by adjusting the flow of current. The driver converts high-voltage AC from 198 to 264V into a low-voltage DC output between 18 and 36V, suitable for safely powering LEDs. It ensures the power supply is smooth and steady by compensating for any variations in temperature and electrical conductivity. This keeps your lights performing well and prevents flickering, overheating and colour changes.

Features & Benefits

• Compatible with leading-edge or trailing-edge dimmers for versatility
• Double-insulated, so no earth connection is required
• Output current of 500mA works with widely available LED lights
• IP20 rating indicates it's touch-proof and protected against dust

Applications

• Retail displays
• Hospitality mood lighting
• Shelf illumination
• Public transport

How easy is the driver to conceal?

The driver measures just 120 (L) x 45 (W) x 28mm (H), so it's small enough to build into your designs or tuck behind reveals. The case is made of discreet white plastic, so it blends into pale backgrounds.

How bright will my LEDs be when used with this driver?

The driver's maximum output power is 18W. If you have the dimmer set to its brightest setting, expect to be dazzled.

Datasheet
