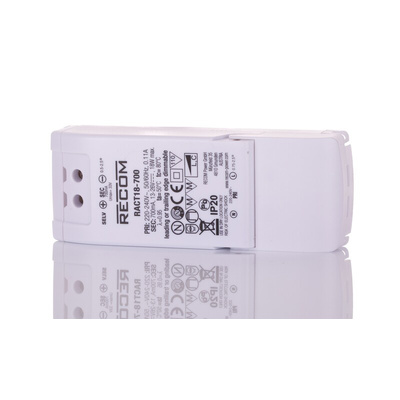

RACT18-700, Recom LED Driver, 13 → 26V dc Output, 18W Output, 700mA Output, Constant Current Dimmable, Драйвер светодиодов

RECOM LED Driver, Dimmable, 1W Power Dissipation - RACT18 Series - RACT18-700

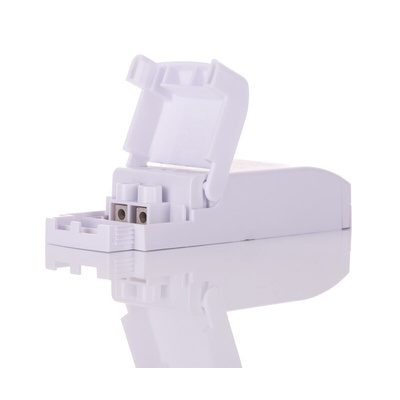

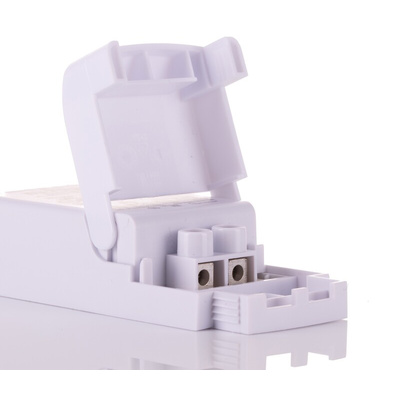

Need a high-power LED driver for your lighting application? This unit from RECOM has a current output of 700mA and maximum power output of 18W, making it suitable for display and accent lighting in residential and commercial applications. It's dimmable and has an output voltage range between 13 and 26V DC, to give you low and bright lighting options. Screw terminals and cable clamps keep your connections durable and an IP20 rating means it's finger-safe to help protect you during installation.

Features & Benefits

• Wide operating temperature range between -20°C and +50°C for use in demanding environments
• 1 to 100% dimming range to give you a full range of lighting levels
• TRIAC dimming operation works with leading-edge and trailing-edge dimmers for versatility
• Minimum efficiency of 85% and 1W power dissipation to prevent energy wastage
• Works with input voltages between 198 and 264V AC for wide compatibility

Applications

• Retail display units
• Built-in furniture and accent lighting
• Advertising and information boards

Does this LED driver need earthing?

The LED driver is constructed with double insulation and a SELV output, so earthing isn't necessary.

Datasheet

Installation Sheet - RACT18-700
