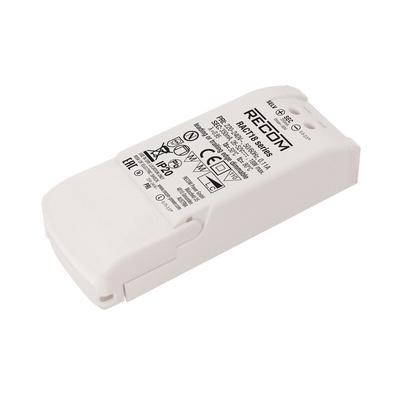

RACT18-1050, Recom LED Driver, 9 → 18V dc Output, 18W Output, 1.05A Output, Constant Current Dimmable, Драйвер светодиодов

RECOM LED Driver, 198 to 264V AC Input Voltage, 1 to 100% Dimming Range - RACT18 Series - RACT18-1050

Need to power LEDs using a high input voltage? Make light work of it with this RECOM LED driver. When supplied with 198 to 264V AC, it converts the signal into a DC output between 9 and 18V with a constant current of 1050mA. This stops diodes from overheating, boosts their service life and keeps you beaming. You can mount the unit in a flash thanks to its extra-large screw terminals and built-in cable clamps.

• 82% efficiency indicates it's an energy-saving component
• Broad operating temperature range between -20°C and +50°C for use in harsh environments
• IP20 rating for protection from objects greater than 12mm
• Triac-dimmable type for controlling light intensity at high voltages

Applications

• Accent lighting
• Furniture and shelving
• Cove lighting

The RACT18-xxx series are low cost, triac-dimmable, constant current 18W LED drivers available with either 350mA, 500mA, 700mA, 1.05A or 1.4A full-range outputs. The drivers are Class II (double insulated) meaning no earth connection is required. The phase angle dimming works with leading or trailing edge dimmers. The RACT18 is suitable for indoor locations up to 50°C ambient temperature and is certified for building into furniture for applications such as dimmable shelf lighting, cove lighting or accent lighting.

What size is this driver?

Triac-dimmable with leading or trailing edge dimmers
Class II with SELV output (no earth required)
Extra-large screw terminals and integrated cable clamps for easy installation
Power factor corrected >0.95
Dimming range 1..100%
Compatible with a wide range of dimmers

This LED driver weighs 100g and measures 120 (L) x 45 (W) x 28mm (H), so it's easy to install discreetly.

Can I use this unit in humid environments?

Yes, you can. It's a durable option that operates safely in humidity levels between 5 and 85% RH.
