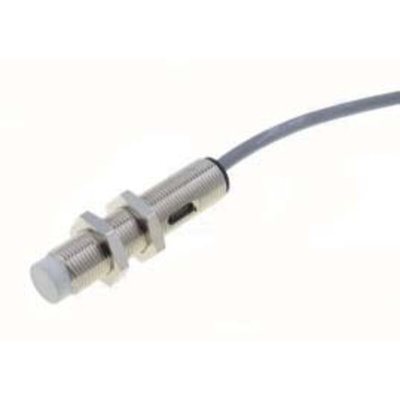

RS PRO Capacitive Barrel-Style Proximity Sensor, M12 x 1, 4 mm Detection, PNP Output, 10 → 30 V dc, IP67, Датчик

RS PRO M12 x 1 Capacitive sensor - Barrel, PNP Output, 4 mm Detection, IP67, Cable Terminal

You can use this RS PRO capacitive sensor barrel type to effectively detect and measure metallic and non-metallic objects without physical contact. It uses an electrical field to accurately detect these items and can also detect contents inside non-metal containers.
The housing of this unit is made from nickel-copper alloy to guarantee it's strong, durable and resistant to corrosion. It has an Ingress Protection (IP) rating of IP67, so you can be assured it's protected against dust and temporary immersion in water. The sensor also has reverse polarity and short circuit overload protection, so you can be sure it's safe to use in your application. Sensors like this one are often used in storage and warehouse environments and in the livestock breeding industry.

Features and Benefits

• Barrel body style
• Detection range of 4 mm
• Nickel copper alloy housing material
• Ingress Protection (IP) rating of IP67
• Length of 52 mm
• Maximum operating temperature of +70°C
• Minimum operating temperature of -25°C
• Non-flush mounting style
• Output type of PNP (Positive Negative Positive)
• Reverse polarity protection
• Capacitive sensor technology
• Unshielded
• Short circuit overload protection
• Meets CE (Conformité Européenne) standards
• Supply voltage of 10 to 30 V DC
• Switching current of 200 mA (milliamperes)
• Switching frequency of 50 Hz
• Cable terminal type
• Thread size of M12 x 1
