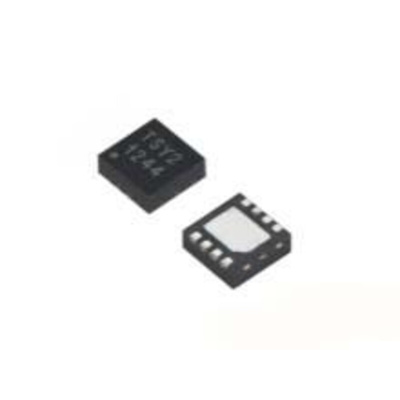

G-NIMO-003, TE Connectivity G-NIMO Series Temperature Sensor, Digital Output, Surface Mount, I2C, ±0.2°C, 8 Pins, Датчик температуры

The TSYS02D is a single chip, temperature sensor. It provides factory calibrated data corresponding to the measured temperature. The data is provided via I2C interface. The temperature range is -40°C ... +125°C while the resolution is 0.01°C. The TSYS02D can be interfaced to any microcontroller by an I2C interface. The TDFN8 package provides smallest size and very fast time response.

High Accuracy Temperature Sensor
16 bit Resolution
High Speed, low Response Time
Low Power Consumption
I2C Interface
Small TDFN8 Package
High Accuracy ±0.2°C @ Temp.: -5°C ... +50°C
Adjustment of high accuracy temperature range on request
Low Supply Current < 420μA (standby < 0.14μA)
I2C Interface up to 400kHz
Small IC-Package TDFN8 2.5mm x 2.5mm
Operating Temperature Range: -
40°C ... +125°C
APPLICATIONS:Industrial Control
Replacement of Precision RTDs, Thermistors and NTCs
Heating / Cooling Systems
HVAC
