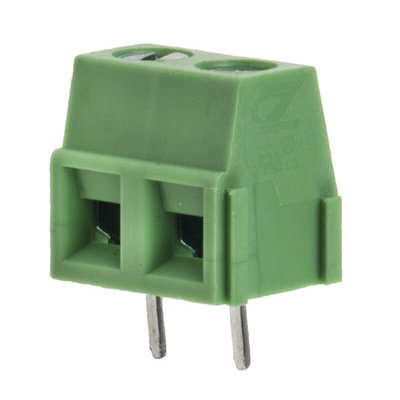

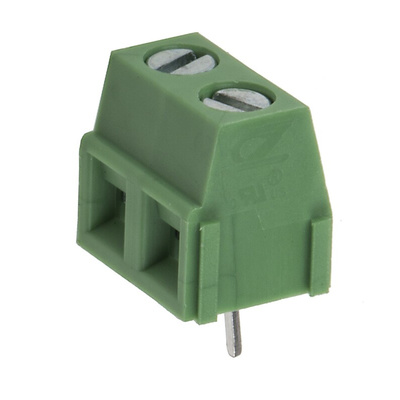

RS PRO PCB Terminal Block, 2-Contact, 5.08mm Pitch, Through Hole Mount, 1-Row, Screw Termination

RS PRO 2-Way Pluggable Terminal Block, 5.08 mm Pitch

If you need to connect two or more wires across your PCBs (printed circuit boards), you can use this two-way pluggable terminal block from RS PRO. It can be installed on the PCB directly, with easy through-hole mounting.
The block's contacts are made from a tin-plated brass material, which has an excellent level of conductivity and resistance to wear and oxidation for effective performance over a long lifespan. They're designed for screw termination, which will allow you to connect your circuitry simply and securely.
This product is made from a polyamide material that can withstand impact, and it has a flame retardance certification of UL (Underwriter Laboratories) 94-V0, indicating that it will burn for no more than 30 seconds when exposed to a naked flame. The terminal is safe, reliable and ideal for use in industrial equipment and consumer electronics.

Features and Benefits

• Vertical body orientation
• Green colour
• Current rating of 10 A
• Voltage rating of 300 V
• Depth of 10.1 mm
• Width of 8.3 mm
• Length of 10.16 mm
• Pitch of 5.08 mm
• Nylon 66 material
• Through-hole mounting type
• Two contacts
• Single row
• Screw termination method
