RS PRO RS-960 True-RMS Handheld Digital Multimeter

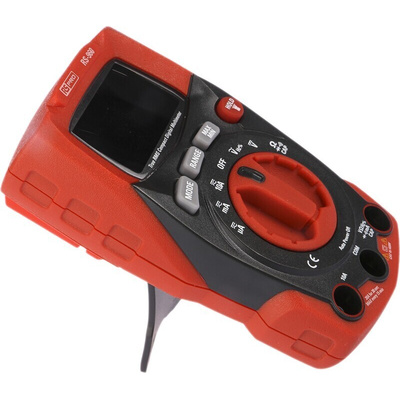

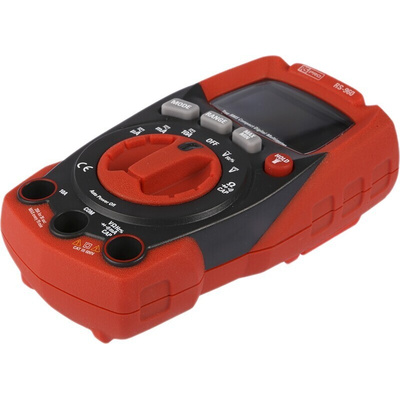

The RS-960 from RS PRO is a highly reliable compact handheld digital multimeter that includes a range of electronics measurement functions including frequency, resistance, capacitance, diode test, continuity. These true RMS multimeters feature a large high contrast 4000 counts LCD display with backlight and are enclosed with a double molded case with shock resistance of 6.5 feet (2 meters), offering excellent durability and protection. The device also includes a hold function, allowing you to freeze the results on the display. The RS-960 includes a tilt stand allowing you to stand the device up right, keeping your hands free and a holster for easy and safe storage.

Features and benefits

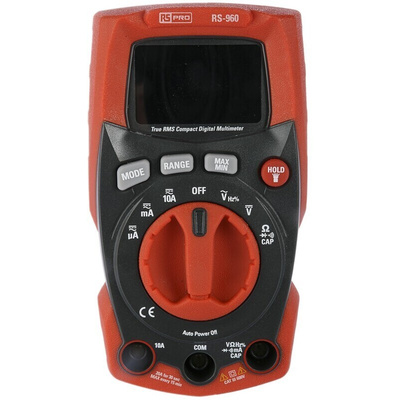

• Large high contrast 4000 counts LCD display with backlight feature
• Double molded case for extra protection

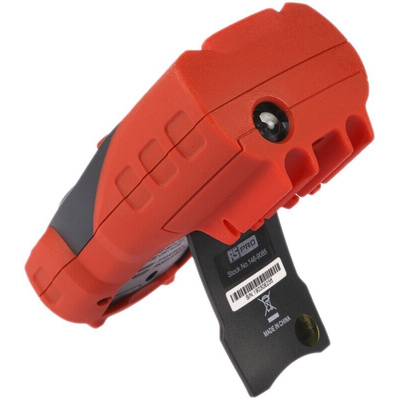

• Tilt stand to allow the device to stand upright
• Safety category CAT III, 600V
• Variety of functions including frequency, resistance, capacitance, diode test, continuity
• Holster included for safe storage
• A range of functions measured including AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance, Temperature
• Compact design, ideal for working on the go
• Auto power off to preserve battery life
• Flashlight feature, ideal for working in dark environments (flashlight will automatically power off after 5 minutes of inactivity)
• Hold mode, allowing you to freeze the reading on the display
• MAX/MIN mode, allowing you to lock either the maximum or minimum reading on the display

Applications

Digital Multimeters are a type of measurement device used to test and measure a range of electrical properties such as voltage (volts), current (amps) and resistance (ohms). Using a digital output readout, the digital multimeter is connected to a device and measures typically the voltage and any resistances, giving you an output you can measure. Digital multimeters offer a wide range of AC and DC measurement capabilities to suit a variety of applications. Multimeters are essential tester tools for carrying out electrical work from home renovations to large scale installations.

Compact design

The RS-960 is a compact handheld digital multimeter that is ideal for use in a variety of environments, taking up minimal space in your tool kit. The dimensions of the device are just 182 x 82 x 59mm including the holster.

FAQs

Does this include a continuity check?

Yes, the RS PRO RS-960 features a continuity check feature.

Does it feature an audible signal?

This device features an audible signal that will sound if the resistance is less than 50Ω (approx.), test current <0.35mA.

Does this come with test leads?

Yes, test leads are provided with the RS PRO RS-960.
