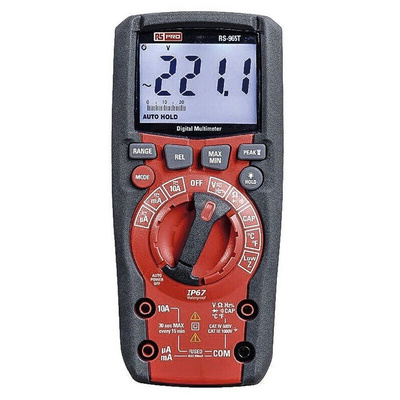

RS PRO RS-965 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max, Мультиметр

RS PRO Heavy Duty Digital Multimeter, True-RMS IP67

This heavy duty handheld digital multimeter from our own brand RS PRO features a variety of electronics measurement functions including AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance and Temperature. The device features True-RMS for excellent precision when testing, with results clearly displayed via an oversized high contrast LCD display screen. Additional functions included such as low Z help to eliminate "ghost" voltages, whereas the MAX/MIN/AVG feature allows you to hold either the maximum, minimum or average reading, providing precise results. The multimeter is housed in a double molded enclosure with an IP67 rating, offering excellent protection with water resistant properties.

Features and Benefits:

User friendly interface
True-RMS for excellent precision
Large high contrast 6000 count LCD display with backlight feature
Safety category CAT III, CAT IV 1000V
Variety of functions including frequency, resistance, capacitance, diode test, continuity
A range of functions measured including AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance
Auto power off function to preserve battery life
Test leads included
Double molded enclosure with IP67 rating offering excellent protection and water resistance
Built-in flashlight for low light environments
Low Z setting ideal for eliminating "ghost voltage" errors

Applications:

Digital Multimeters are a type of measurement device used to test and measure a range of electrical properties such as voltage (volts), current (amps) and resistance (ohms). Using a digital output readout, the digital multimeter is connected to a device and measures typically the voltage and any resistances, giving you an output you can measure. Digital multimeters offer a wide range of AC and DC measurement capabilities to suit a variety of applications. Multimeters are essential tester tools for carrying out electrical work from home renovations to large scale installations.

FAQs

What is "Low Z setting"

The "Low Z" setting allows the multimeter to eliminate errors commonly found with "ghost" voltages. Ghost voltages are present when non-powered wires are in close proximity to wires powered by AC voltage.

What is the IP rating?

The IP rating refers to the level of protection offered by the enclosure of the device. The first number relates to the level of protection from solids such as dust, whereas the second digit relates to liquid. The higher the IP rating, the higher the level of protection will be.

This device features an IP67 rating, offering protection from dust ingress and water.

Does this include a continuity check?

Yes, this device features a continuity check feature.

Does it feature an audible signal?

Yes, an audible signal is present if the resistance is approx. 50 ±5 or less.
