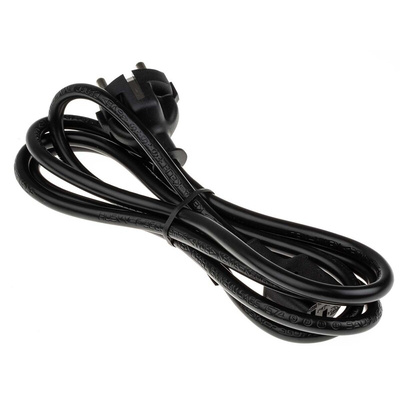

RS PRO IEC C13 Socket to CEE 7/7 Plug Power Cord, 1.8m, Кабель

RS PRO 1.8 m Power Cable, Self-extinguishing VNEU16S3 to VNC13S, 10 A, 16 A, 250 V

Need to plug a C13 appliance like a desktop computer or professional AV equipment into a CEE7 Europlug socket? This IEC-standard power cable from the RS PRO range connects a female C13 plug to a Schuko Europlug, making it suitable to use with low-powered appliances from many European countries.

Sheathed in PVC for durability, this plug is also self-extinguishing in case of fire. The 1.8-m cable is current rated at 10 A or 16 A (dependent on reference method) and voltage rated at 250 V. Each of its three cores has a cross-sectional area of 0.75 mm².

The cable has been tested according to a range of international standards on safe and effective flexible cords (EN 50525-2-11), appliance couplers (EN 60320-1, IEC 60320-1) and plugs and sockets (EC 60884-1). It's also RoHS certified on hazardous substances and meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 on electrostatic discharge.

Features and Benefits

• Power cable
• Black PVC sheath
• 1.8 metres long

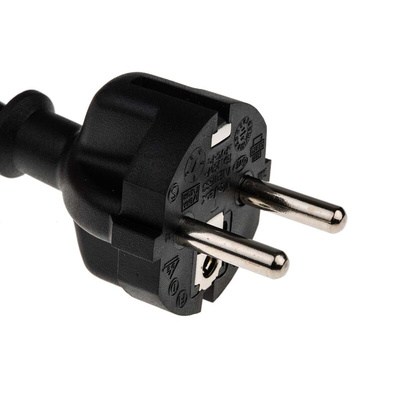

• C13 plug to Schuko Europlug
• Straight male connector A, straight female connector B
• Self-extinguishing in the event of a fire
• Voltage rating of 250 V
• Current rating of 10 A, 16 A
• Three cores
• Each core has a cross-sectional area of 0.75 mm²
• Meets EN 50525-2-11, EN 60320-1, IEC 60320-1, EC 60884-1 as a safe and effective cable assembly
• RoHS compliant on hazardous substances
• Meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 on electrostatic discharge
