1862107, Phoenix Contact SPTAF 1/ 8-3.5-EL Series PCB Terminal Block, 8-Contact, 3.5mm Pitch, Through Hole Mount, 2-Row

Phoenix Contact 8-pin PCB Terminal Block, 3.5 mm Pitch - SPTAF 1/ 8-3.5-EL - 1862107

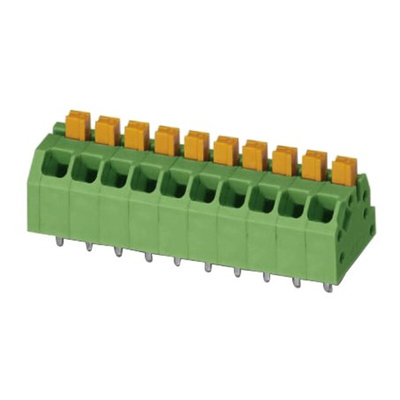

For tool-free wire connections in electronics and automation applications, choose this printed circuit board (PCB) terminal block from Phoenix Contact. It has a push-in spring connection and a finger-operated release button, so it's simple to assemble and take apart. The compact design with 45° wire-mounting means you can easily fit it into tight spaces.
As the connector is compatible with wire sizes of 24 to 16 AWG (American Wire Gauge), it's a versatile choice. The unit maintains a consistent contact force, ensuring long-lasting and reliable operation. Its tin-plated contacts also allow for soldering to give you a secure connection.
Thanks to the terminal block's integrated test connection, quality control and performance checks are quick and easy. To ensure fire safety, the product is rated UL94 V-0 by Underwriters Laboratories, so it stops burning within 10 seconds.

• Angled body orientation
• Polyamide material
• Green colour
• Current rating of 16 A
• Dimensions of 29.5 (length) x 11 (width) x 10.2 mm (depth)
• Male gender
• Through-hole mounting type
• 8 contacts
• 2 rows
• Pitch of 3.5 mm
• Pole format of 8P
• Voltage rating of 160 V
• Weight of 4.4 g

PCB terminal block, nominal current: 16 A, nom. voltage: 160 V, pitch: 3.5 mm, number of positions: 8, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, Colour: green

Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Finger-operated release button for very convenient operation
Small component size for applications where space is at a premium
Quick and convenient testing using integrated test option
