450L-APR-ON-5, Allen Bradley Guardmaster Light Curtain

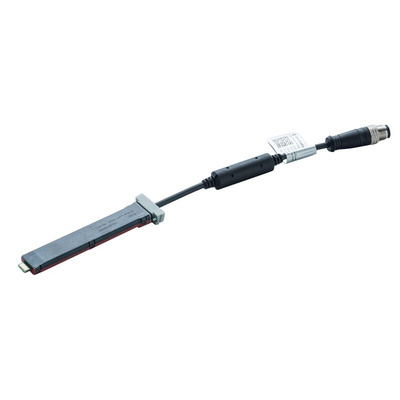

Allen Bradley Guardmaster Receiver Plug-In Module For Guardshield 450L-B Safety Light Curtain, M12 Connector - 450L-APR-ON-5

Use this receiver plug-in module from Rockwell Automation's Allen Bradley Guardmaster range to adjust the functions of your safety light curtains. It's designed for the receiving curtain and allows you to temporarily suspend the safety function if particular conditions are met. With its integrated presence-sensing device initiation (PSDI) feature, this receiver can monitor up to three light curtains, making it a versatile solution. It also has Ethernet and internet protocol (IP) compatibility for real-time diagnostics of your equipment. It's common to find units like this one used on material handling equipment.

• Ingress protection rating of IP65 indicates that it's dust-tight and resistant to low-pressure water jets
• M12 adapter for easy and tool-less connection to the sensor port
• Two LEDs indicate the optimal alignment of this device for precise mounting
• Easy configuration of start mode and scanning ranges via integrated DIP (dual inline package) switches

Standards and Certifications

• TÜV (Technischer Überwachungsverein)
• ISO (International Organisation for Standardisation)
• ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards

450L Plug-in, Bottom(connection), Receiver, ON/OFF, M12, 5 pin, male

How do I connect this module to the safety light curtain?

You can connect this plug-in module to the connection port at the bottom of the safety light curtain.

Note

This safety device can be used with Guardlink, a new safety linking technology from Allen Bradley Guardmaster.
Guardlink simplifies and reduces the connection time of the safety system, whilst providing real-time diagnostic information over Ethernet IP. This makes it simple to identify the location of the device that has tripped the safety system, thus reducing downtime, and improving the machines overall efficiency. For more details, please go to the Guardlink brochure.
