450L-B4FN0300YD, Allen Bradley Guardmaster 450L Series GuardShield Light Curtain Transceiver, 16 Beam(s), 14mm Resolution, Световые завесы

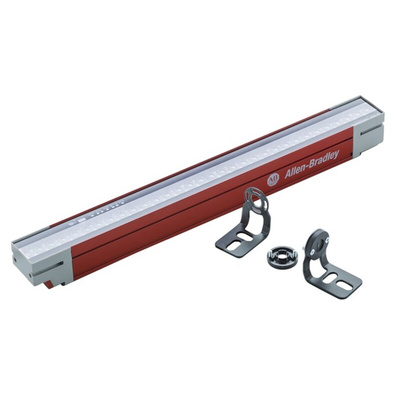

Allen Bradley Guardmaster Light Curtain, Transceiver, 0.5 to 4m Scanning Range - 450L-B4FN0300YD

Prevent accidents in your industrial environment using this light curtain from Rockwell Automation's Allen Bradley Guardmaster range. It projects a beam of light towards a compatible receiver in a hazardous area, which detects if a person is present and stops the machine from operating. Thanks to its patented technology, you can also use this transceiver as a receiver by simply inserting a plug-in module into it. This unit has a scanning range between 0.5 and 4m, which makes it a versatile choice.

• Beam resolution of 14mm to effectively detect items as small as a person's finger
• Two LED indicators for easy adjustment of alignment position
• IP65 rating indicates it's dust-tight and protected against low-pressure water jets
• Quick response time of less than 15ms for added safety

Standards and Certifications

• TÜV certified Ple
• Type 4 IEC 61496-1/-2
• SILcl3 per EN ISO 13849-1
• IEC 62061

450L-B Guard Shield 14mm (0.55 in.), 300 mm (11.82 in.)

How do I configure this light curtain?

This unit features a DIP switch on the plug-in module that lets you set various operating parameters ranging from the scanning range, start mode and protective height to the external device monitoring for ease of configuration.
