450L-B4FN0600YD, Allen Bradley Guardmaster 450L Series GuardShield Light Curtain Transceiver, 16 Beam(s), 14mm Resolution, Световые завесы

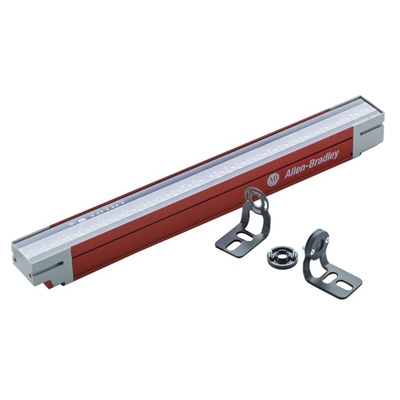

Allen Bradley Guardmaster Light Curtain, Transceiver, 600mm Protective Height - 450L-B4FN0600YD

This light curtain from Rockwell Automation's Allen Bradley Guardmaster range is designed to quickly halt potentially harmful machinery if anyone enters its vicinity. For wide use, you can set its scanning range between 0.5m and 4mm and its protective height to up to 600mm. A beam resolution of 14mm means it can quickly detect even a person's finger for safe operation. This light curtain uses an innovative patented technology, which enables it to work as both a transceiver and receiver, making it a versatile option.

• LED signals help guide alignment for effective positioning
• IP65 rating means it's protected against dust and low-pressure water jets
• Response time of less than 15ms for quick system shutdown
• Integrated protective field enables sensing over its length for added safety

Standards and Certifications

• SILcl3 per EN ISO 13849-1
• Type 4 IEC 61496-1/-2
• IEC 62061
• TÜV certified Ple

450L-B Guard Shield 14mm (0.55 in.), 600 mm (23.64 in.)

How do I set this transceiver light curtain to receiver mode?

To switch between the transceiver and receiver mode, insert the plug-in module into this component. This module also comes with a DIP switch that lets you set the operating parameters for hassle-free configuration.
