440E-LL5SE8, Allen Bradley Guardmaster 440E Rope Pull Switch, 100m, Straight, Переключатель

Allen Bradley Guardmaster Rope Pull Switch, 100m Length, 200mA Current - 440E-LL5SE8

Need a reliable mechanism to quickly shut off your industrial equipment in the event of an emergency? Turn to this rope-pull switch from Rockwell Automation's Allen Bradley Guardmaster range. Simply attach it to your equipment, and grab and pull it to stop the machine from operating. This ease of use makes it a practical choice for hard-to-access equipment like conveyor belts. As the cable is 100m long, you'll find it convenient to activate from a distance. The unit features an emergency stop button for added safety.

• Current rating of 200mA to withstand powerful electrical systems
• Wide operating temperature range between -20°C and +75°C for safe use in challenging environments
• Ingress protection rating of IP66 indicates it's protected from dust and high-pressure jets of water
• Aluminium housing is impact-resistant for durability

Standards and Certifications

• EN ISO 13849-1 (European Union - International Organisation for Standardisation)
• cULus (Underwriters' Laboratories in Canada and the US)
• TÜV (Technical Inspection Association)

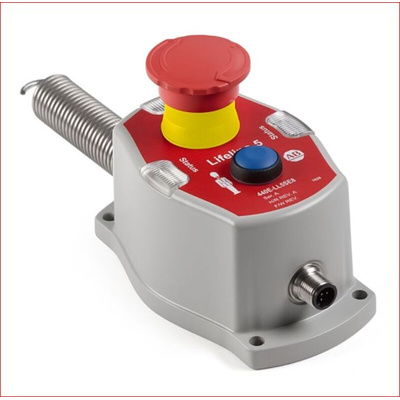

440E Lifeline Emergency Cable Pull Switches - Lifeline 5 standard housing with E-stop, 2 OSSD Inputs, 2 OSSD Outputs, 1 Aux Output, 1 Tension Output, 8-Pin Micro (M12)

How do I install this rope-pull switch?

To set this unit up, attach the tension spring of the cable to the front of the switch. An integrated tension indicator shows its operating status as you adjust the cable tension. When it turns off, this means you have properly set the tension.

Note

This safety device can be used with Guardlink, a new safety linking technology from Allen Bradley Guardmaster.
Guardlink simplifies and reduces the connection time of the safety system, whilst providing real-time diagnostic information over Ethernet IP. This makes it simple to identify the location of the device that has tripped the safety system, thus reducing downtime, and improving the machines overall efficiency. For more details, please go to the Guardlink brochure.

Datasheet

Guardlink Brochure

Guardlink Datasheet

1512522_Specification Sheet_en
