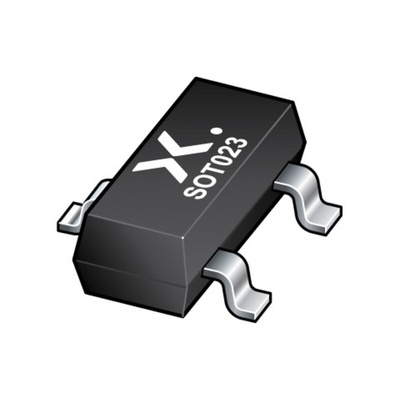

Nexperia PDTC144WT,215 NPN Digital Transistor, 100 mA, 50 V, 3-Pin SOT, Цифровой транзистор

Resistor Equipped Transistors (RETs), Space- and cost-saving solutions that reduce your component count and simplify circuit design, By combining transistors with their attendant resistors, RETs make excellent space- and cost-saving solutions. We offer some 400 products, so you can find the best fit for your application. Within our portfolio you will find single and dual RETs with a great variety of resistor combinations. Furthermore you can also choose from ranges with SMD and leaded packages.

± 10% resistance ratio tolerance
Reduces pick and place costs
Built-in bias resistors
Reduces component count
100 mA, 500 mA and up to 800 mA output current capability
Simplifies circuit design

NPN resistor-equipped transistors
R1 = 47 kOhm, R2 = 22 kOhm, NPN resistor-equipped transistor (see "Simplified outline, symbol and pinning" for package details).

Built-in bias resistors
Simplified circuit design
Reduction of component count
Reduced pick and place costs.
AEC-Q101 qualified
