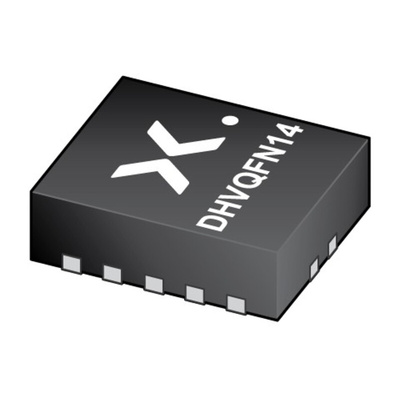

Nexperia 74HCT00BQ,115, Quad 2-Input NAND Logic Gate, 14-Pin DHVQFN, Логический вентиль

Gates, Simplify your circuit designs, Top-flight collection of logic gate functions in a variety of package options. Ideal where you need control, PCB miniaturization and routing simplification or as glue logic.

Mixed 5 V and 3.3 V applications
Reduce time to market for complex designs
Save board space
Improved signal integrity for complex layouts
Wide supply voltage range
Low propagation delay
Overvoltage tolerant options
Low input threshold options
CMOS low power
Cell phone
Computing
STB
LCD TV
Industrial controllers

Quad 2-input NAND gate, The 74HC00, 74HCT00 is a quad 2-input NAND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Input levels:
For 74HC00: CMOS level
For 74HCT00: TTL level
Complies with JEDEC standard no. 7A
ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
Multiple package options
Specified from –40 °C to +85 °C and from –40 °C to +125 °C
