7TCA083610R0002 CN105-H, WJ Furse Copper Earth Clamp Max. Conductor Size 26 x 8mm

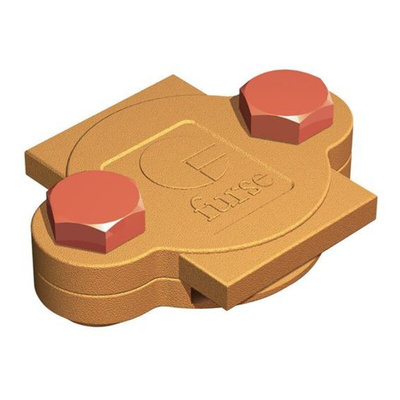

Furse Tape Junction Clamp

Furse tape junction lamp is designed to connect lightning protection to earthing system and facilitate periodic testing.The clamped connection is easily made/remade to allow for periodic testing.

Features

Manufactured from high quality copper and aluminium alloys
Low resistance connection between overlapping tapes
Simple to install
Tightening torque 13 Nm

Application

Used to provide an effective low resistance connection between overlapping tapes.

Standards

IEC/BS EN 62561-1 Class H, UL96

Manufactured from high quality copper and aluminium alloys. Simple to install, providing an effective low resistance connection between overlapping tapes. The clamped connection is easily made/remade to allow for periodic testing
Tightening torque CN005 15 Nm, CN105-H 13 Nm
Not as illustrated (drawing available on request)
UL96 (CN105-H)
