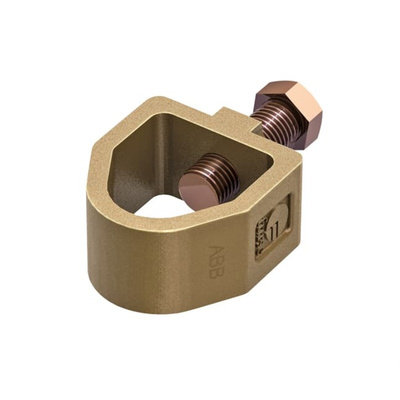

7TCA083210R0004 CR105, WJ Furse Copper Alloy Earth Clamp Max. Conductor Size 26 x 12mm Nominal Rod dia. 12.7mm

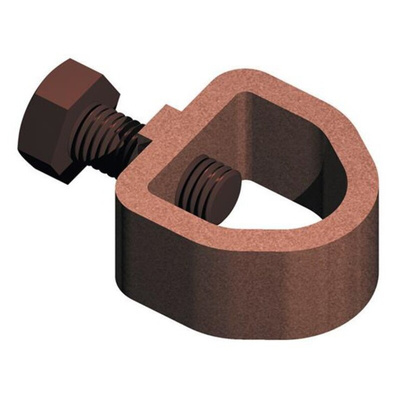

Furse Rod to Tape Clamp (type A)

Furse Rod to Tape Clamp (Type A) is designed to connect earth rod to copper tape to complete earth rod assembly. Conductivity and mechanical strength are essential considerations in clamp design to ensure that an earthing system remains operative for many years.

Features

Corrosion resistance
High-quality copper and aluminium alloys
Phosphor bronze fitting
Tightening torque 15 Nm

Applications

Used to connect earth rod to copper tape.

Standards

IEC/BS EN 62561-1 Class H
BS 7430
UL467

WJ Furse Earth Clamp, Lightning Protection, Copper-Zinc Base Alloy Material - 7TCA083210R0004 CR105

To cut the risk of electrical malfunctions and damage to your machinery, reach for this earth clamp from WJ Furse. The device connects your earth rod to a flat tape conductor, ensuring a secure and low-resistance connection in your earthing system. When there's a lightning strike, the clamp safely redirects the excess energy into the ground. A body made of durable copper-zinc base alloy resists mechanical stress and corrosion to give you long-term use in harsh industrial settings.

Features & Benefits

• Low weight of 86.1g makes it easy to handle and minimises strain on your setup
• Maximum conductor size of 26 x 12mm and nominal rod diameter of 20mm suits a wide range of setups
• Supplied in packs of 10 for convenient stocking
• Hex-head bolt allows for precise torque adjustment

Applications

• Power generation plants
• Telecommunications equipment
• Oil and gas industry
• Construction sites
• Maritime transport

How reliable is this component?

The earth clamp's copper-zinc body delivers high electrical conductivity. This ensures minimal energy loss and reduces the risk of overheating to safeguard your system from potential damage.

Datasheet
