IQD XO Oscillator LFSPXO018034, Кварцевый генератор

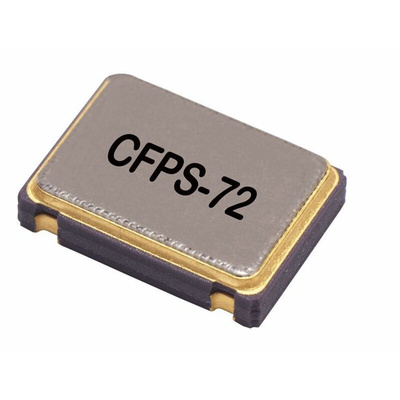

CFPS-72 Crystal Oscillators

CFPS-7S series crystal clock oscillator. These IQD brand SMD's are cased in ceramic with a hermetically sealed metal lid and feature a good standard of environmental properties in relation to shock and vibration. They are available in a standard 7 x 5mm size and have wide frequency parameters.

The IQD Frequency Products LFSPXO018034 Standard 7 x 5mm crystal oscillator in a ceramic package with a seam sealed metal lid, hermetically sealed. The model no is CFPS-72 and model issue no is 14. The operating supply voltage is 5.0V ±10% and it can be draw current of 20mA.

Output compatibility HCMOS/TTL
Drive capability 15pF std, 50pF max
Rise and fall fame 10.0ns max
Duty cycle 45/55%
Start up time 10ms max 1.1ms typ to 90% of final amplitude

Crystal Oscillators 7x5mm Ceramic case

Datasheet - LFSPXO018034 831018034
