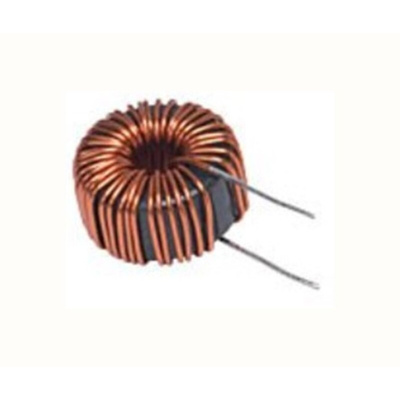

GLA-20-0009, Tamura 9 μH ±25% Ferrite Coil Inductor, 20A Idc, 4mΩ Rdc, GLA-20, Индуктор

1542473
Номер производителя: GLA-20-0009Производитель: Tamura
Цена за шт.
1659.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Tamura's choke coils being manufactured through the study on unique features of carefully selected magnetic metal materials, under the highest levels of magnetic characteristics and electric designing technology. Magnetic metal materials provide a high saturation magnetic flux density and good stability for the humidity, which are suitable to make the cores in light weight and miniature size.

Amorphous wound cores with special heat treatment are used in the coil. GLA (for high power)

Very low core loss at high frequency.
Designable for small-size/light weight compared with ferrite core and dust core.
Low leakage of flux density due to gap-less structure.
Stabilized inductance for temperature.
APPLICATIONS:For smoothing switching power supplies output.
For active filter for harmonic suppressor.
For DC-DC converter.
For normal mode line filter.
For noise prevention of TV, audio device etc.
GLA For high-power, excellent d.c. Superposition characteristics.

Техническая спецификация
pdfDatasheet
Ведущий диаметр:
4 x 1мм
Высота:
19мм
Диаметр:
29мм
Индукция:
9 мкГн
Максимальное сопротивление постоянного тока:
4мОм
Максимальный постоянный ток:
20A
Основной материал:
Ferrite
Отклонение:
±25%
Размеры:
29 (диаметр) x 19мм
Серия:
GLA-20
Тип клеммы:
Провод
Тип монтажа:
Сквозное отверстие
