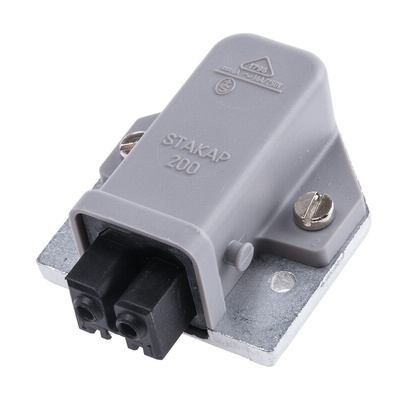

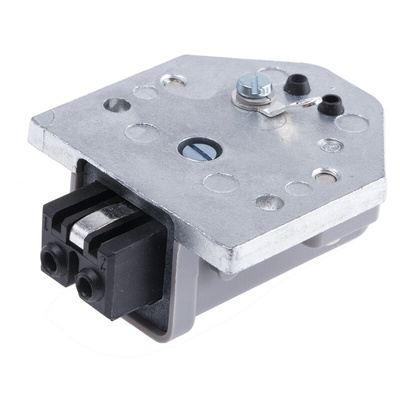

932045106 STAKAP 200, Hirschmann, ST IP20 Grey Panel Mount Industrial Power Plug, Rated At 16A, 250 V, 400 V, Разъем питания

Belden Hirschmann Industrial Power Connector, Straight Body Orientation, Female Gender - ST Series - 932045106 STAKAP 200

Choose this industrial power connector from Belden Hirschmann to get a rock-solid energy supply. An inbuilt locking mechanism prevents accidental uncoupling, so you can be sure it won't wobble loose when faced with movement or vibration. The screw termination method makes it easy to add to your setup with just a screwdriver, so there's no need for specialist tools. Thanks to NBR gasket material, corrosion is cut out of the picture and you get a long service life.

Features & Benefits

• IP20 rating means it's touch-proof and resistant to objects bigger than 12mm
• Flame-retardant material boosts safety in the event of a fire
• Takes wires between 0.25 and 1.50mm² for wide compatibility
• Handles up to 50 mating cycles for longevity

Applications

• Industrial automation
• Power distribution
• Heavy engineering

Can this product handle harsh conditions?

It performs reliably in a temperature range between -30°C and +90°C, so it's ideal for use harsh conditions.

Datasheet - 932045106 STAKAP 200

Catalogue - Power Connectors
