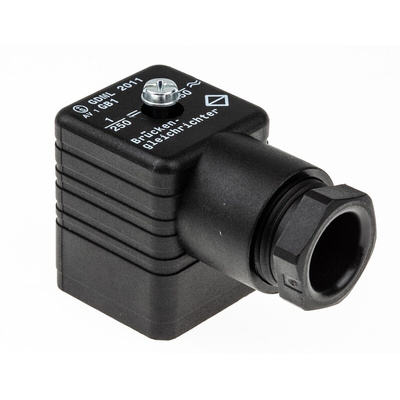

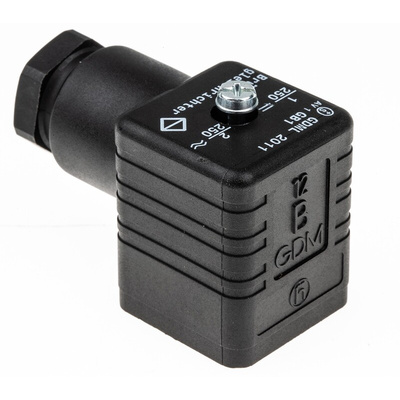

933925212 GDML 2011 GB1 LED 48 black, Hirschmann GDML 2P+E DIN 43650 A, Female Solenoid Valve Connector, 250 V ac/dc Voltage, Разъем

Belden Hirschmann Female Solenoid Valve Connector, 250V AC/DC Voltage Rating, 2A Current Rating - GDML Series - 933925212 GDML 2011 GB1 LED 48 Black

Link the coil leads of your solenoid valves to their power sources with this robust connector from Belden's Hirschmann range. The cable termination device has copper and zinc contacts that combine reliable conductivity with low electrical resistance for a stable and reliable connection. These contacts are tin-plated, so resist corrosion and ensure long-term performance. Polyamide housing provides impact and abrasion resistance, making this adapter suitable for use in harsh environments. For extra protection, it has a cable gland with strain relief to protect wires from damage due to twisting at sharp angles.

Features & Benefits

• Wide operating temperature range of -40°C to +90°C for use in demanding conditions
• Accepts a cable diameter range of 4.5 to 11mm for versatile use
• Integrated varistor circuit to prevent damage from transient voltages for electrical safety
• AC current rating of 2A for energy efficiency and low heat dissipation

Applications

• Food and beverage manufacturing plants
• High-pressure and low-pressure compressors

Is this connector dustproof?

Yes, this connector has an IP65 (ingress protection) rating, which indicates that it has full protection against dust and low-pressure water jets.

Approvals

UL Listed; CSA Certified; VDE

Standards

DIN 43650-A

GDML2011GB1 - Data sheet

GDML Series Connectors Catalogue Extract

Datasheet
