932332002 GDML 2011 LED 24 black, Hirschmann GDML 2P+E DIN 43650 A, Female Solenoid Valve Connector, with Indicator Light, 24 V Voltage, Разъем

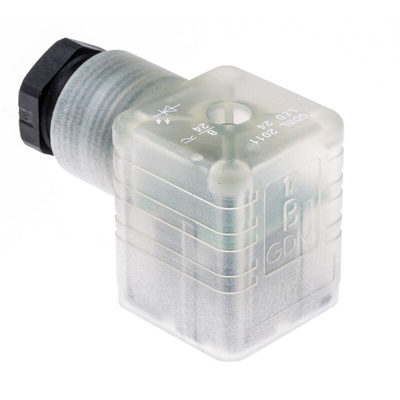

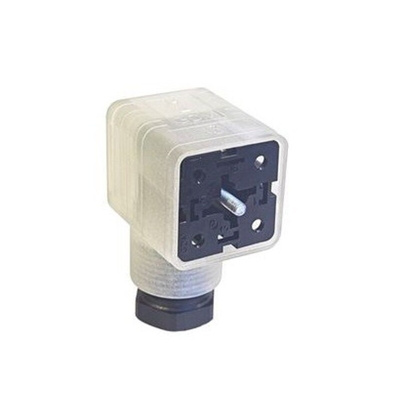

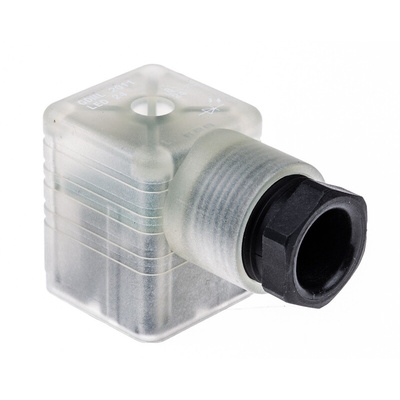

Belden Hirschmann Solenoid Valve Connector, 8A Current Rating, Clear Housing - GDML Series - 932332002 GDML 2011 LED 24 black

Need to connect a solenoid valve to a pressure switch in your pneumatic system? Choose this 24V AC/DC solenoid valve connector from Belden's Hirschmann range. It's easy to terminate by soldering and accepts cables with diameters between 4.5 and 11mm, so it's highly versatile. An IP65 rating indicates that it's dust-tight and protected against water projected from a nozzle.

Features & Benefits

• Red LED indicator for easy status monitoring
• Operating temperature range between -40ºC and +90ºC for safe use in challenging environments
• Supplied in packs of 50, so you'll have plenty in stock

Applications

• Machine tooling
• Equipment manufacturing
• Domestic appliances

What's the contact configuration of this connector?

This unit has a contact configuration of 2P+E. This means it has two poles and an earth contact, which reduces the risk of electric shocks during handling.

Type A DIN 43650 Hirschmann

A comprehensive range of cable sockets, appliance connector bases and accessories typically for use with solenoid valves on pneumatic and hydraulic equipment. The inner connector can be rotated through 90° increments so the gland can be positioned in all four directions. Housing material is glass-filled nylon making them impact resistant.,All Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.,All are supplied complete with centre retaining screw, while plug bases are solder terminated and supplied with fixing screws. Suitable gasket to provide IP65 sealing, stock-no. 156-4729. Supplied in bags of 10

Datasheet

Instruction Sheet

Product / Process change notification

PCN-LTPS-2018-06-28_GDM Series EOL_EN.pdf

Datasheet - 932332002 GDML 2011 LED 24 Black
