933137100 GDSN 207 black, Hirschmann GDSN 207 2P+E DIN 43650 C, Female Solenoid Valve Connector, 250 V ac/dc Voltage, Разъем

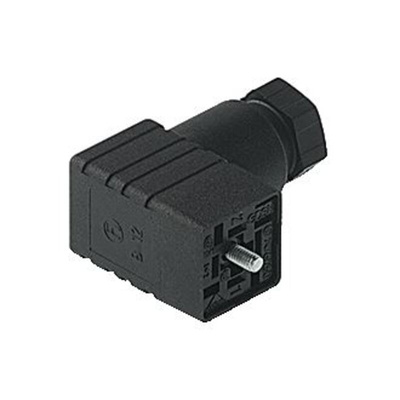

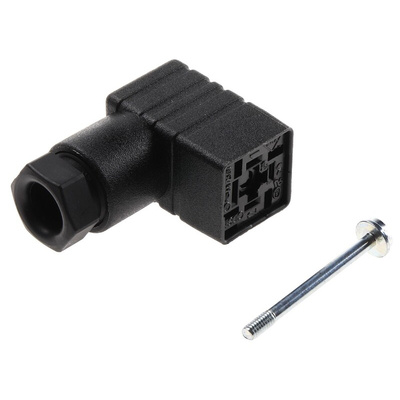

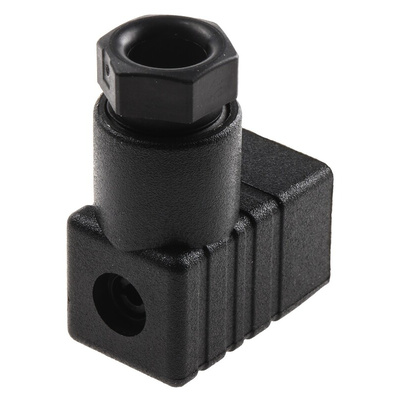

Belden Hirschmann Female Solenoid Valve Connector, 6A Current Rating - GDSN 207 Series - 933137100 GDSN 207 Black

Link solenoid valves to your pneumatic and hydraulic systems with this robust connector from Belden's Hirschmann range. Its PG7 cable gland comes equipped with strain relief to protect the connector wire from damage. Polyamide housing provides impact and abrasion resistance, making this connector suitable for use in harsh environments. Thanks to a contact surface made of tin, which is a highly conductive material, you can count on a steady and reliable connection. A central screw makes for quick and easy mounting, with no need for special tools. You'll find this unit frequently used in industrial applications to control the mix, release and distribution of fluids.

Features & Benefits

• Wide operating temperature range of -40ºC to +125ºC for use in harsh environments
• IP65 (ingress protection) rating indicates it's dust-tight and resistant to low-pressure water jets

Applications

• Beverage mixers and fillers
• Process control and automation
• Material handling equipment

What are the dimensions of this solenoid valve connector?

This compact connector has an overall length of 38mm and an overall width of 26mm. The block, where the female end is, has an open diameter of 15mm.

Industrial Standard Series GDS/GDSN Connectors

Datasheet

Catalogue - Valve Connectors

Instruction Sheet - Series GDS & GDSN
