933023100 GDSN 307 black, Hirschmann GDSN 307 3P+E DIN 43650 C, Female Solenoid Valve Connector, 250 V ac/dc Voltage, Разъем

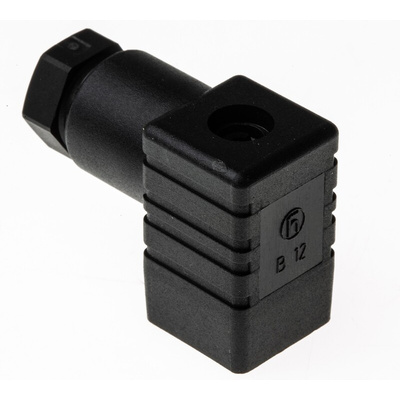

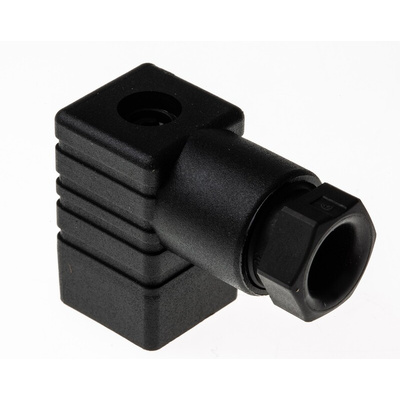

Belden Hirschmann Female Solenoid Valve Connector, 6A Current Rating - GDSN 307 Series - 933023100 GDSN 307 black

Connect a solenoid valve to your pneumatic or hydraulic system with this connector from Belden's Hirschmann range. The contact surfaces of this connector are made of highly conductive tin material, so you can be sure of a reliable connection. The housing is made of polyamide, which offers reliable resistance to abrasion and impacts, so it's ideal for use in industrial settings. This material also serves as an insulator to protect you against electric shocks. The unit accommodates cables with diameters from 4.5 to 6mm, making it a versatile connection solution.

Features & Benefits

• Wide operating temperature range of -40ºC to +125ºC for use in demanding environments
• IP65 (ingress protection) rating indicates it withstands dust and low-pressure water jets
• Central screw mounting makes installation quick and easy

Applications

• Pharmaceutical industry
• Refrigeration and air conditioning units
• Sprinkler systems

What's the voltage rating of this connector?

The voltage rating of this connector is 250V AC/DC.

What are the dimensions of this solenoid valve connector?

The connector's overall length is 38mm and it has a width of 26mm. The open diameter of the female end is 15mm, making this a compact choice.
