TEM 2-1212, TRACOPOWER TEM 2 DC-DC Converter, 12V dc/ 165mA Output, 10.8 → 13.2 V dc Input, 2W, Through Hole, +70°C Max Temp, Преобразователь

Traco 2W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TEM-2 Series

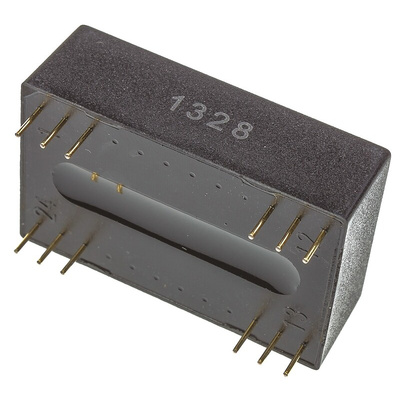

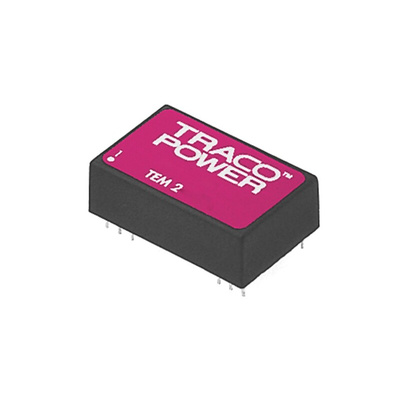

The Traco Power TEM 2 series is a range of regulated, 2 Watt, DC/DC converters in a DIP-24 package.
These isolated converters offer tight line/load regulation and 100Vdc I/O isolation. The internal filter fitted as standard in these DC-DC converters reduces reflected input ripple and guarantees low output noise. The TEM 2 series provides an economical solution for many industrial or consumer electronics applications.

Products not recommended for new designs, please refer to the alternative at the bottom of the page
DIL-24 plastic package
Tightly regulated output
Very low output noise
Short circuit protection
Operating temperature range –25°C to +70°C
I/O isolation 1’000 VDC
Internal filter
Industry standard pinout

Standards

cUL/UL 60950-1, IEC/EN 60950-1

Approvals

cUL/UL , IEC/EN, CSA File No. 226037

TEM 2-1212 Datasheet
