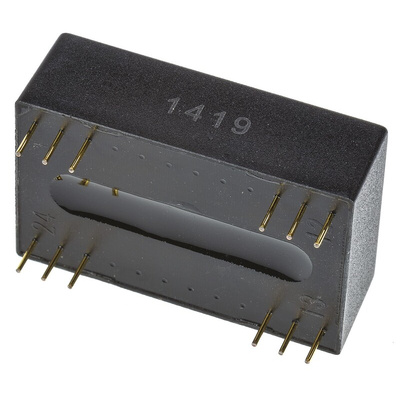

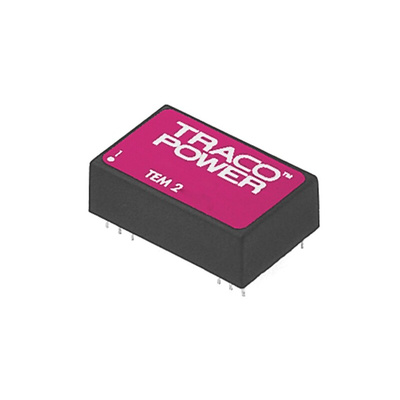

TEM 2-2411, TRACOPOWER TEM 2 DC-DC Converter, 5V dc/ 400mA Output, 21.6 → 26.4 V dc Input, 2W, Through Hole, +60°C Max Temp, Преобразователь

Traco Power DC-DC Converter, Through-Hole Mounting, Includes Pi Filter - TEM 2 Series - TEM 2-2411

When the job calls for tight regulation and protective isolation, you're in safe hands with this DC-DC converter from Traco Power. It accepts any input voltage across a broad range of 21.6 to 26.4V DC and steps it down to a stable load of 5V DC for powering battery-supplied devices. Thanks to the unit's precise line regulation of ±0.3% maximum and ±0.5% maximum load regulation, you stay in charge of input and output values. This converter is well insulated as it offers an isolation voltage of up to 1kV DC, making it a safety-boosting option to protect you and your equipment.

Features & Benefits

• Indefinite short-circuit protection shields you and your kit against common current faults
• Operates reliably in temperatures between -25°C and +70°C
• Through-hole mounting style gives you a stable way of securing the component to your PCB

Applications

• Telecommunications networks
• Industrial process control
• Consumer electronics

What's the benefit of this unit's internal Pi filter?

Thanks to a built-in Pi filter, you get reduced levels of noise, so there's minimal risk of the device's operation being affected by EMI.

TEM 2-2411 Datasheet
