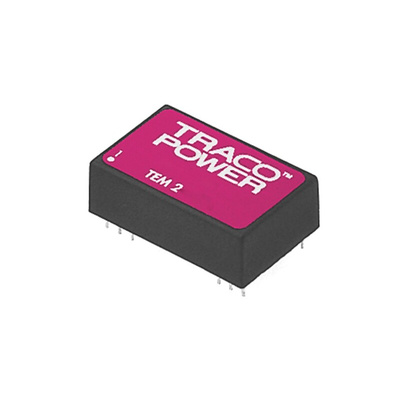

TEM 2-2422, TRACOPOWER TEM 2 DC-DC Converter, ±15V dc/ ±65mA Output, 21.6 → 26.4 V dc Input, 2W, Through Hole, +70°C Max, Преобразователь

Traco Power DC-DC Converter, ±3% Load Regulation, 61% Efficiency - TEM 2 Series - TEM 2-2422

When you need a sure-fire power solution to spark up your electronics, choose this DC-DC converter from Traco Power. It accepts a voltage input range of 21.6 to 26.4V DC and outputs a smooth and steady 15V DC. The unit guards against voltage spikes and fluctuations, thanks to a 1kV DC isolation voltage. This puts up a safety barrier between input and output, protecting your equipment from damage. Robust thermoplastic housing resists wear in harsh settings to ensure a long product life.

Features & Benefits

• DIP-24 format with industry-standard pinouts for a trouble-free installation
• Performs in challenging conditions with an extensive operating temperature range between -25°C and +70°C
• Internal filter reduces ripple and noise for interference-free operation
• Through-hole mounting achieves a stable and permanent connection you can count on

Applications

• Industrial production processes
• Consumer electronics
• Research laboratories

Does this converter have short-circuit protection?

Yes, continuous short-circuit protection means the component shuts down power faults in a flash.

What size is the unit?

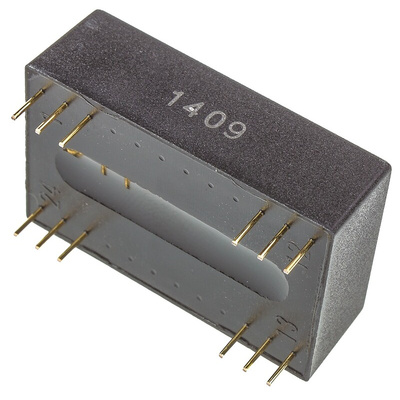

This converter is compact enough to slot easily into tight spaces, with dimensions of 32 (L) x 20 (W) x 10mm (D).

TEM 2-2422 Datasheet
