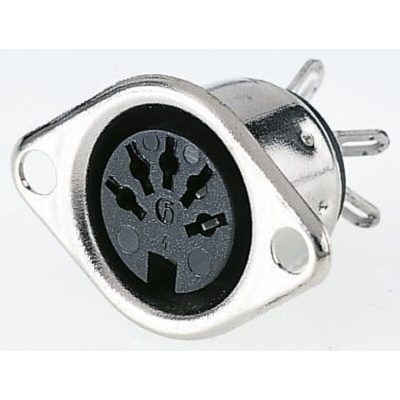

930343200 MAB 7 S, Hirschmann, MAB 7 Pole Din Socket, DIN 45329, 4A, 34 V ac/dc IP30, Female, Panel Mount, Разъем

1564252
Номер производителя: 930343200 MAB 7 SПроизводитель: Hirschmann
Цена за шт. (норма упаковки 5 шт)
395.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Belden HirschmannDIN Socket, Female, IP30 Rating - MAB Series - 930343200 MAB 7 S

Reliability is the name of the game with this female DIN socket from Belden Hirschmann. Its tin-plated brass contacts offer low resistance and optimal performance, while its steel housing adds the robustness you need for industrial environments. The socket uses solder termination to form a reliable connection. Thanks to a 4A current rating and 34V AC/DC voltage rating, this is a versatile option.

Features & Benefits

• Operating temperature range from -20°C to +60°C to handle challenging environments
• IP30 rating indicates protection from solid objects larger than 2.5mm, such as wires and fixings
• Straight body orientation to make installation quick and simple

Applications

• Control systems
• Audio equipment
• Industrial networks

What are DIN 45329 standards?

This connector complies with DIN 45329 standards that specify the design and dimensions of circular connectors. They standardise the number of contacts, contact arrangement, thread size and locking mechanisms in these devices to ensure compatibility.

DIN номер:
DIN 45329
Кол-во контактов:
7
Концевая заделка:
Припой
Материал контактов:
Латунь
Материал корпуса:
Сталь
Номинал тока:
4A
Номинальное напряжение:
34 В перем./пост. тока
Ориентация корпуса:
Прямой
Покрытие контактов:
Олово
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
-20°C
Размер разъема:
Стандартный
Род:
Female
Серия:
MAB
Степень защиты IP:
IP30
Тип монтажа:
Крепление на панель
