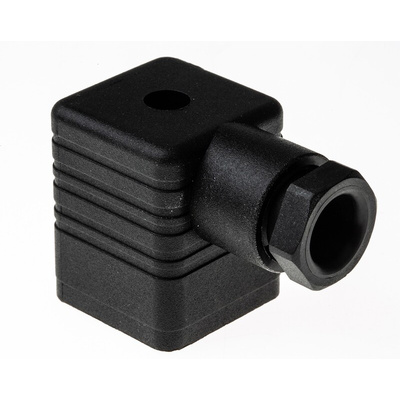

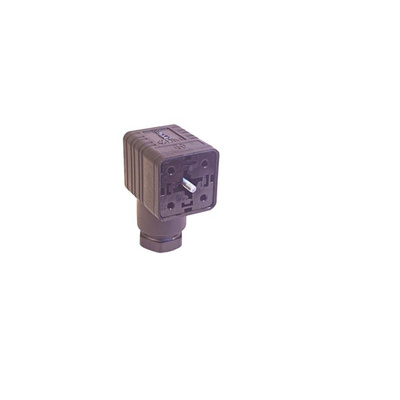

931965100 GDM 2009 black, Hirschmann GDM 2P+E DIN 43650 A, Female Solenoid Valve Connector, 250 V ac/dc Voltage, Разъем

Belden Hirschmann Female Solenoid Valve Connector, 16A Current Rating - GDM Series - 931965100 GDM 2009 black

Use this connector from Belden's Hirschmann range to securely hold your solenoid valve in place. The connector is suitable for 4.5 to 7mm cable diameters, so it's a versatile option. Setting it up is easy as it uses one central screw to fix the housing to the contact bearer and a screw-down cable gland to lock the gasket firmly around the cable. You'll find units like this commonly used with magnetic valves, pressure transducer flow monitors and temperature sensors.

Features & Benefits

• IP65 (ingress protection) rating ensures it's dust-tight and protected against low-pressure water jets
• Right-angle body orientation allows for installation in awkward areas or tight setups
• Glass-filled nylon housing provides resistance to impacts and abrasion

Applications

• Industrial automation
• Automotive industry
• Commercial appliances
• Food production

What voltage and current ratings does this solenoid valve connector have?

This solenoid valve connector has a voltage rating of 250V AC/DC and a current rating of 16A.

What's the cable gland size?

This connector has a PG9 cable gland size. This means it has a thread pitch of 1.4112mm, thread density (TPI) of 18 and a thread diameter of 15.2mm.

Instruction Sheet

Product / Process change notification

Datasheet - 931965100 GDM 2009 black
