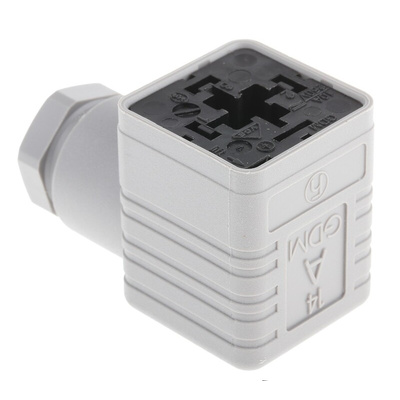

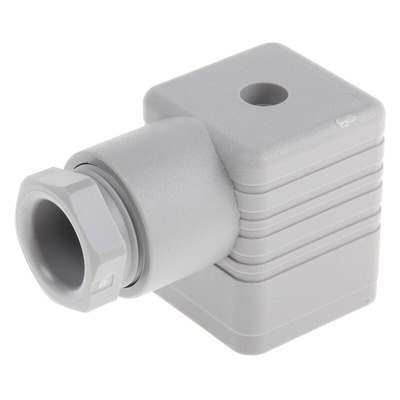

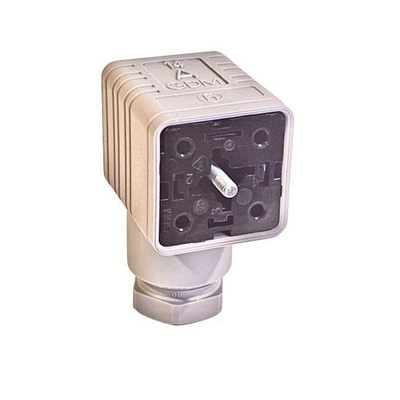

931957106 GDM 2011 grey, Hirschmann GDM 2P+E DIN 43650 A, Female Solenoid Valve Connector, 250 V ac/dc Voltage, Разъем

Belden Hirschmann Solenoid Valve Connector, PA Housing, 6 to 9mm Cable Diameter - GDM Series - 931957106 GDM 2011 grey

Need a reliable power solution to control the airflow in your pneumatic equipment? Choose this solenoid valve connector from Belden Hirschmann. It has a broad cable diameter range between 6 and 9mm so you'll find it's versatile when you're setting up your wiring. A current rating of 16A means it keeps up with your high-power electrical system. As the connector's contacts are plated in robust tin, they won't fall foul of corrosion in damp environments.

Features & Benefits

• Works without a glitch in challenging temperatures between -40ºC and +125ºC
• PA housing offers thermal resistance for durability

Applications

• Gas plants
• Medical and pharmaceutical industry
• Construction sites

How do I mount this connector?

The unit has a threaded design so you can mount it by screwing it directly into a port without the need for complex tools.

Type A DIN 43650 Hirschmann

A comprehensive range of cable sockets, appliance connector bases and accessories typically for use with solenoid valves on pneumatic and hydraulic equipment. The inner connector can be rotated through 90° increments so the gland can be positioned in all four directions. Housing material is glass-filled nylon making them impact resistant.,All Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.,All are supplied complete with centre retaining screw, while plug bases are solder terminated and supplied with fixing screws. Suitable gasket to provide IP65 sealing, stock-no. 156-4729. Supplied in bags of 10
