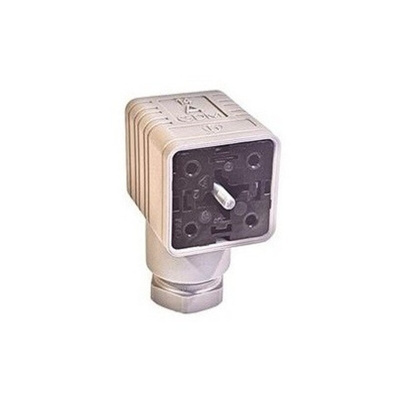

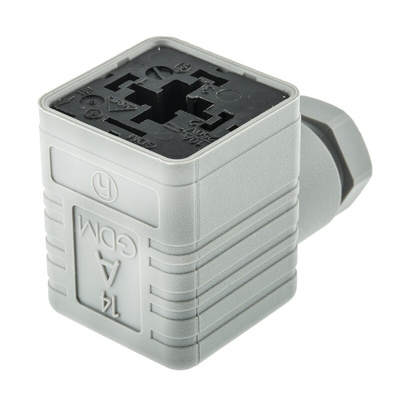

931969106 GDM 3009 grey, Hirschmann GDM 3P+E DIN 43650 A, Female Solenoid Valve Connector, 250 V ac/dc Voltage, Разъем

Belden Hirschmann Solenoid Valve Connector, 16A Supply Current, PG9 Cable Gland Size - GDM Series - 931969106 GDM 3009 Grey

Pair this solenoid valve connector from Belden Hirschmann with a solenoid component to create an effective flow of power or signal. It works with a 250V AC/DC input voltage, so it's suitable for high-powered systems. A 3-pin pole format features an earth grounding for safety. The valve connection will last for up to 50 mating cycles, so you can be sure of a long service life. Thanks to screw-down mounting and termination, installation is quick, simple and doesn't call for specialist tools.

Features & Benefits

• IP65 rating indicates it's dust-tight and resists low-pressure water jets from all angles
• Durable glass-filled nylon housing is self-extinguishing to enhance workplace safety

Applications

• Signal transmission
• Temperature sensors

What size cable fits with this solenoid valve connector?

The connector accommodates a cable diameter of 4.5 to 7mm, so it's a versatile option.

Type A DIN 43650 Hirschmann

A comprehensive range of cable sockets, appliance connector bases and accessories typically for use with solenoid valves on pneumatic and hydraulic equipment. The inner connector can be rotated through 90° increments so the gland can be positioned in all four directions. Housing material is glass-filled nylon making them impact resistant.,All Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.,All are supplied complete with centre retaining screw, while plug bases are solder terminated and supplied with fixing screws. Suitable gasket to provide IP65 sealing, stock-no. 156-4729. Supplied in bags of 10

Datasheet

Instruction Sheet

Product / Process change notification
