09150006102, HARTING Han D Male 10A Crimp Contact Minimum Wire Size 1 for use with Heavy Duty Power Connector

Han-Com®, Han D®, Han DD® and Han® E Crimp Contacts

A range of high quality turned crimp contacts for Han-Com®, Han D®, Han DD® and Han® E inserts. The appropriate parallel action crimp to tool is also available for optimum crimp quality, as is the appropriate service crimp tool.

Features & Benefits

• The parallel action crimp tool offers optimal crimp quality and features a rotating locator. See stock number 114-7706.
• For service and small assembly, the service crimp tool is offered complete with locator. See stock number 313-6607.

Product Application Information

The Han-Com combination connectors are industrial connectors designed for providing power and signal contacts in one insulation body. The Han-Q Series are connector inserts with a compact design, while the Han D/DD/DDD series are connectors built for high pin count interconnect applications.

Note

Han-Com® inserts have mixed power and signal formats. A typical identifier is ’4//2’ which means there are 4 power contacts and 2 signal contacts. The current rating is different for each type of contact within a particular insert.

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.

Approvals

UL, CSA, SEV

Crimp Pin Contacts for use with Han Series Connectors

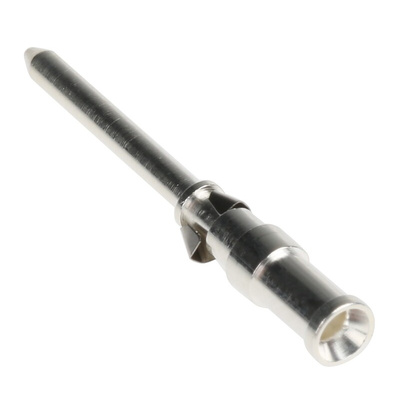

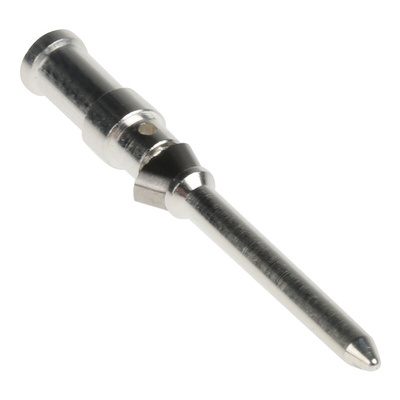

The 09150006102 from Harting, are high-quality male crimp contacts which can be used in Han-Com, Han CD, Han D/DD/DDD and Han Q inserts. The AWG 18 turned contacts have a silver-plated finish and are rated at 10 A. Crimp contacts are a solderless method of creating an electrical contact and are ideal for creating a long-lasting and reliable connection between the connector and the cable.

09150006102 Features:

Able to be used with a wide range of Han series inserts
Silver plated Surface contacts
18 AWG
10 A
Mating cycles ≥ 500
Conductor cross-section1 mm²
Conductor cross-section AWG 18
Stripping length 8 mm
Material (contacts) Copper alloy

Specifications:
EN 60664-1
IEC 61984

Han-Com® Signal & Power (Crimp and Screw)

These Han- Com® inserts are available in current ratings from 10A to 100A. They are intended for use typically with hoods and housings; RS stock Nos. 181-0561, 181-0741, 181-0785, 363-8535, 363-8585 and their associated ranges. These hood and housing ranges are associated to a specific Harting 'Size' number identifier

Datasheet

Datasheet - 09150006102

Guide to Han sizes
