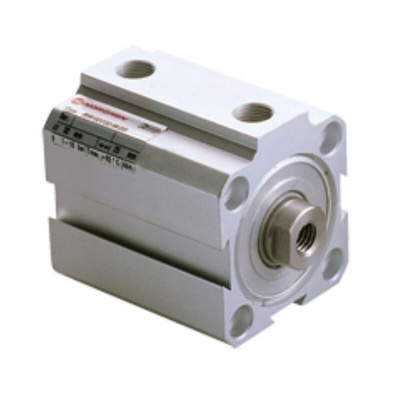

RM/92020/M/10, Norgren Pneumatic Compact Cylinder - 20mm Bore, 10mm Stroke, RM/92000/M Series, Double Acting, Цилиндр

IMI Norgren Pneumatic Compact Cylinder, 10 Bar Maximum Operating Pressure, 42 (L) x 32 (W) x 35.5mm (H) - RM/92000/M Series - RM/92020/M/10

For power movement in a tight spot, install this pneumatic compact cylinder from IMI Norgren. It's used to position, clamp or eject objects in automated setups. Small dimensions of 42 (L) x 32 (W) x 35.5mm (H) mean this is a space-saver – it's about a third of the size of commonly used alternatives. Polyurethane nitrile rubber seals keep the device airtight to ensure optimal performance, while a low-friction design helps reduce wear for a longer lifespan. The non-corrosive aluminium and stainless steel construction takes temperatures between -5°C and +80°C in its stride.

Features & Benefits

• Short 10mm stroke for repeated accuracy
• M5 port connections for wide compatibility with standard systems
• Light weight of 220g adds minimal strain to your structures

Applications

• Medical imaging equipment
• Automotive manufacturing and maintenance
• Railway applications

At what pressures can I use this pneumatic compact cylinder?

The unit's broad operating pressure range between 1 and 10 bar lets you use it with systems running at both low and high pressure.

Is this a single-acting or double-acting unit?

The product is a double-acting unit, so it retracts and delivers thrust from both ends for consistent power.

RM/92000/M Compact Cylinders Data Sheet

Datasheet - RM/92020/M/10

Catalogue - World - Class Motion & Fluid Control Solutions
