RM/92032/M/10, Norgren Pneumatic Compact Cylinder - RM/92032, 32mm Bore, 10mm Stroke, RM/92000/M Series, Double Acting, Цилиндр

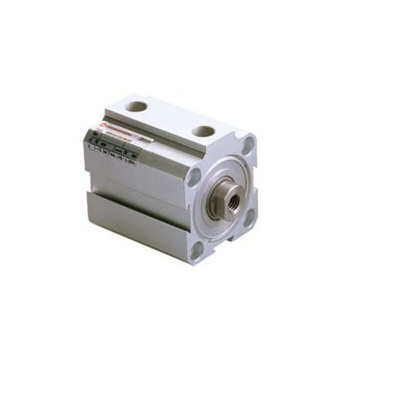

IMI Norgren Pneumatic Compact Cylinder, Magnetic Piston Type, G1/8 Port Connection - RM/92000/M Series - RM/92032/M/10

Put your machinery in motion with this pneumatic compact cylinder from IMI Norgren. It's a double-acting unit, which means there's an open port at each end. As air flows in and out, it pushes the piston rod back and forth to generate the accurate linear movement needed for precision tasks. With its broad operating temperature range between -5°C and +80°C, you can rest assured that this cylinder will stand up to the rigours of harsh environments.

Features & Benefits

• Magnetic piston design enables position tracking without direct physical contact
• Rugged anodised aluminium alloy barrel and end caps resist mechanical wear
• Robust PUR seals provide thermal resistance for durability
• Stainless steel piston stands up to corrosion

Applications

• Transmission systems
• Printing presses
• Conveyor belts
• Energy industry

What operating pressure can this cylinder handle?

As this cylinder has an operating pressure range between 1 and 10 bar, it's a suitable option for low-pressure settings.

How do I mount this cylinder?

Mounting the unit is straightforward, as you just screw its threaded end into a G1/8 port connection without the need for complex tools.
