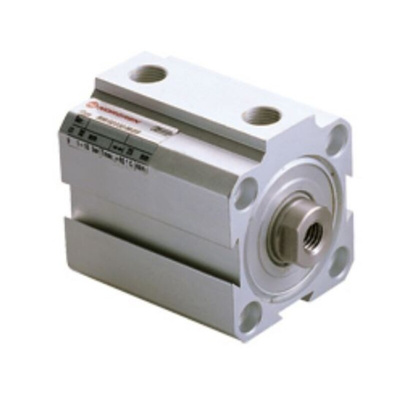

RM/92032/M/20, Norgren Pneumatic Compact Cylinder - 32mm Bore, 20mm Stroke, RM/92000/M Series, Double Acting, Цилиндр

1568074
Номер производителя: RM/92032/M/20Производитель: Norgren
Цена за шт.
47307.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Cylinders

Magnetic piston as standard across range
Stainless steel piston rod
Anodised aluminium alloy barrel and end caps
Polyurethane nitrile rubber seals
Very compact - approximately one third the length of a corresponding ISO model
Spring return on single-acting models
Temperature range -5°C to +80°C (consult our technical department for use below +2°C)

IMI Norgren Pneumatic Compact Cylinder, 55.5 (L) x 45 (W) x 45mm (H), 730g Weight - RM/92000/M Series - RM/92032/M/20

Looking for a component that stays in line while performing jobs such as positioning, clamping or ejecting objects? Try this pneumatic compact cylinder from IMI Norgren. The double-acting unit makes the most of pressurised air by forcing it in and out through both ports to drive the linear movements needed for the effective functioning of your application. As it's made entirely from non-corroding materials, you can count on durability and consistent performance, even when conditions are steamy.

• Durable stainless steel piston rod brushes off environmental damage
• Compact unit of 55.5 (L) x 45 (W) x 45mm (H) fits easily in tight spaces
• Wide operating temperature scope between -5°C and +80°C for use in harsh conditions

Applications

• Automotive industry
• Aerospace applications
• Automated assembly and packing lines
• Medical equipment
• Energy plants

How do I choose the right compact pneumatic cylinder for my application?

You should ensure the dimensions of the component fits in the designated space and consider the amount of force needed to operate your machinery. The bore size and stroke length are important considerations – this device has a bore of 32mm and a stroke of 20mm.

Техническая спецификация
pdfRM/92000/M Compact Cylinders Data Sheet
Вес:
730гр
Высота:
45мм
Давление - максимальное рабочее:
10 бар
Действие:
Double
Длина:
55.5мм
Отверстие:
32мм
Пневматическое соединение:
G 1/8
Производитель - серия:
RM/92000/M
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-5°C
Размеры:
55.5 x 45 x 45мм
Тип демпфирования:
Not Cushioned
Ход:
20мм
Ширина:
45мм
