P5100A Probe Type, P5100A | Tektronix P5100 Oscilloscope Probe, Probe Type: High Voltage, Passive 500MHz 2.5kV dc 100x

Tektronix Oscilloscope Probes

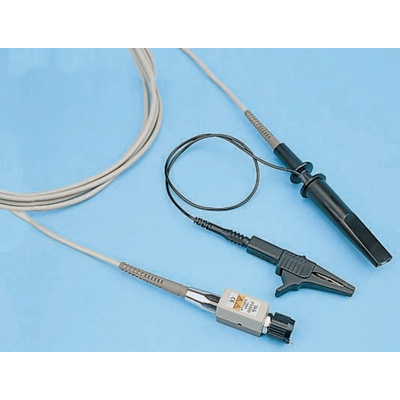

The Tektronix oscilloscope high voltage probe has a low input capacitance designed for higher frequency applications. This probe can be compensated to match plug-ins and oscilloscopes with nominal input capacitances of 7pF to 30pF. A variety of screw-on accessories provide an easy connection to the device under test. Supplied with:Cable markers setCrocodile clipAdjustment toolHooktip (small)Hooktip (large)18in ground lead6in ground leadInstruction manual
Features and Benefits
Bandwidth is DC to 500MHz Attenuation ratio is 1:100Input impedance is 40Mohmll2.5pFRise time is 700ps Maximum common mode input voltage is ±1KV Maximum input voltage DC or RMS is 2.5kVPeak 1000VRMS CAT IIWide compensation range (7pF to 30pF)
Applications
Power supply designDesign motor drive Electronic ballast Power semiconductors Switch mode control UPS systems Power converters
Certifications
UL3111-1 EN61010-1 IEC61010-2-031 CSA1010.1 CSA1010.2.031CAT II 1000VAC
