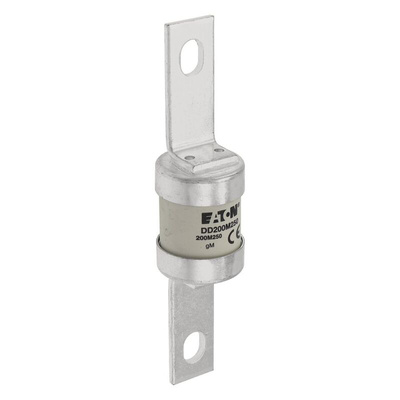

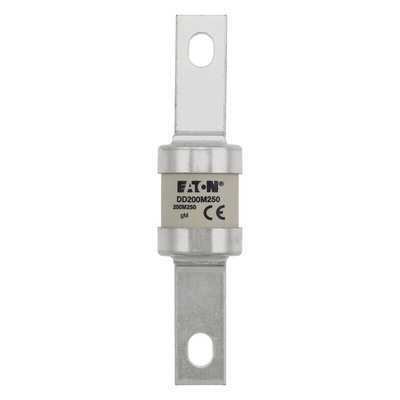

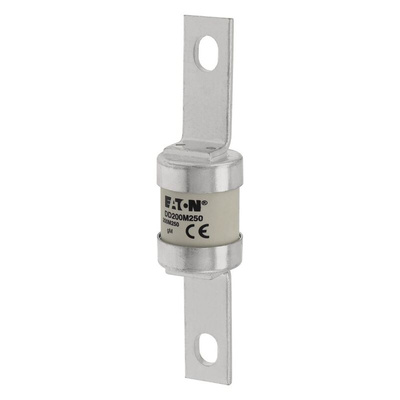

DD200M250, Eaton 200A British Standard Fuse, B2, 415V ac, 111mm

Eaton British Standard Fuse, 80kA Breaking Capacity, Centre Bolted Tag Type - DD200M250

Need to stop rogue currents in their tracks? With a breaking capacity of 80kA, this British Standard fuse from Eaton is the sacrificial weak link you need. It blows when high short-circuit faults occur, which protects downstream equipment from electrical damage. A gM utilisation category indicates it's rated for currents up to 250A, making it a good match for general industrial applications such as power distribution and cable protection. As a high-rupture capacity fuse, it can handle short overloads. This means it won't break during the starting and stopping of electric motors, so you can use it safely in process control and automation applications.

Features & Benefits

• Centre bolted tags come with pre-cut holes for easy mounting
• Minimal power loss of 11W to cut down on energy waste

Is this component suitable for use with DIN rail or busbar applications?

A fixing centre of 111mm means this British standard fuse fits in the RS200 series of front connecting (415-092) and rear stud (221-667) holders. This makes the product suitable for use with busbars and DIN rail mounting.

Note

Eaton formerly known as Bussmann

Datasheet

Transition to Bussmann Series
