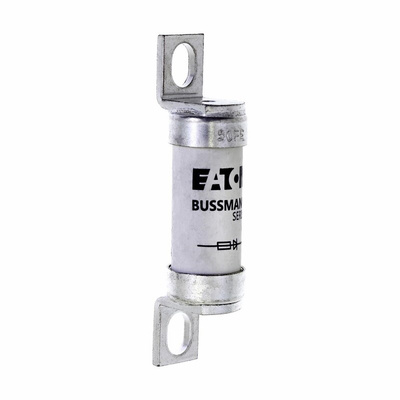

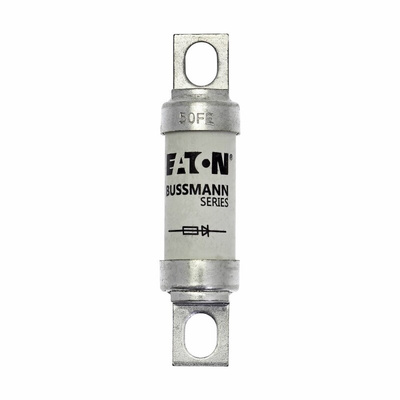

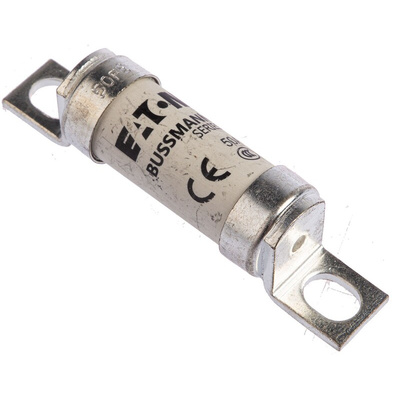

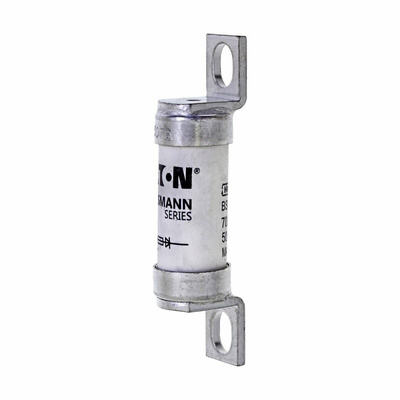

50FE, Eaton 50A British Standard Fuse, FE, 690 V ac, 500V dc, 63.5mm

Eaton Bussmann Series Bolted Tag Fuse - Fast Acting (FF) HRC Power Fuse Range

Eaton Bussmann Series bolted tag fuse is essentially a fuse that is fitted with brackets, these brackets allow the fuse to be bolted onto a fuse holder. Predominantly this type of fuse is used within installations as a "weak link". They are designed to break when a fault occurs, such as an overcurrent or short circuit - they are a safety and damage protection measure. Cooper Bussman's fuses are commonly found within a multitude of industrial applications, electrical equipment and wiring systems.

Features & Benefits

• Compact dimensions
• Excellent current limiting features
• High-speed clearance of AC and DC faults
• Featured a melt Point Curve Class IEC 269-4
• Fuse links, specifically designed for the protection of applications
• Conforms to industry standards
• Low voltage fuse

Eaton British Standard Fuse, FE, 50A 50FE

Use this fuse from Eaton to keep industrial equipment safe from electrical faults. It's an FF (very fast-acting) fuse, so it acts immediately to break an electrical circuit before an overcurrent or short circuit damages components.
High rupture capacity (HRC) means this device works reliably with both high-voltage and low-voltage faults, and its ceramic body ensures it's thermally stable and can resist high temperatures. You can use this multipurpose fuse in a wide range of industrial applications, electrical equipment and wiring systems.

Features & Benefits

• Compact size of 77mm in length to fit in tight spaces and minimise wattage loss
• Bolted tag with two fixing holes for simple and secure installation and replacement
• Voltage rating of 660V AC works with a wide range of low-voltage industrial applications

What's the difference between a fuse and a circuit breaker?

Both work in a similar way to protect your equipment from overloads and short circuits. A fuse will blow when a fault is detected to break the electrical circuit and must be replaced afterwards. A circuit breaker also interrupts the connection but can be reset.

Note

Eaton formerly known as Bussmann

Datasheet

Transition to Bussmann Series
