RS PRO Insulated Crimp Bootlace Ferrule, 8mm Pin Length, 1.1mm Pin Diameter, 0.34mm² Wire Size, Pink, Наконечники

RS PRO Insulated French Colour Coded Bootlace Ferrules

From RS PRO a range of high-quality French colour coded bootlace ferrules (also known as cord end terminals) for providing a clean end termination to multi-stranded wires. These reliable wire ferrules ensure that you have a positive connection when connecting wires to terminal blocks and captive terminals.

What Is a Bootlace Ferrule?
A bootlace ferrule is a metal tube or ferrule with a moulded colour coded insulating collar made from nylon. The ferrule is slipped over the end of a multi-stranded wire, crimped and then inserted into a screw or spring clamp connection.

Where is a Bootlace Ferrule Used?
When the end of a multi-stranded wire is stripped and placed directly under a screw terminal the strands of the wire will naturally fan out under the pressure of the screw. Some strands will go astray. This reduces the quality of the electrical connection and can also result in electrical shorts. When a bootlace ferrule is used, the insulated funnel with it's flared design captures all the strands. These strands are then crimped together in the ferrule tube. The crimped ferrule is then inserted into the terminal to create an electrical connection

Features and Benefits

• Excellent electrical connection
• Reduces short circuits
• Colour coded collar for easy ferrule size identification
• Nylon insulated collar for reduced leakage, creepage and gas intrusion
• Tin plated copper tube for excellent conductivity
• Crimped terminal can be repeatedly inserted and removed without degrading end of the wire

Applications

Bootlace ferrules are used on multi-stranded wires that are being inserted into screw terminals and terminal blocks. Applications include consumer units, circuit breakers, electrical control panels and any equipment where there is a requirement for a multi-stranded wire connection.

Questions and Answers

How to Crimp a Bootlace Ferrule
Select the correct size bootlace ferrule and strip the end of the wire. Cut the wires to the same length as terminal and twist the strands together. Slip the bootlace ferrule (insulated collar first) onto the ends of the wire until the wire strands are flush with the end of the tube. Using a ratchet crimping tool, insert the metal tube of the ferrule into the appropriate crimping section (indicated by sizes marked on the tool). Squeeze the tool handles together until the ratchet releases. A ratchet crimping tool is preferable as the handles will remain locked until a full crimp cycle is completed preventing partial crimps. The crimped wire end is now ready to be inserted into connecting terminal

Suitable Crimping Tools
For ferrules with a wire size range of 0.5 to 6 mm² use crimping tool stock number 683-1605
For ferrules with a wire size range of 10 to 25 mm² use crimping tool stock number 683-1614
For ferrules with a wire size range of 0.5 to 16 mm² use crimping pliers stock number 464-482
For ferrules with a wire size range of 35 or 50 mm² use crimping tool stock number 683-1617

Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

Length quoted is Pin Length

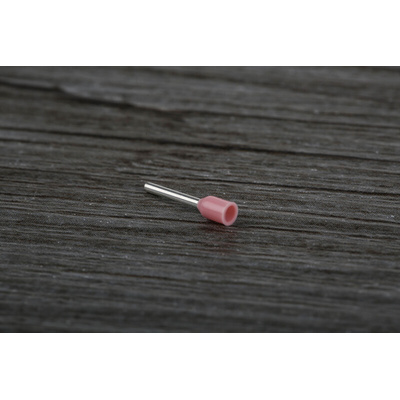

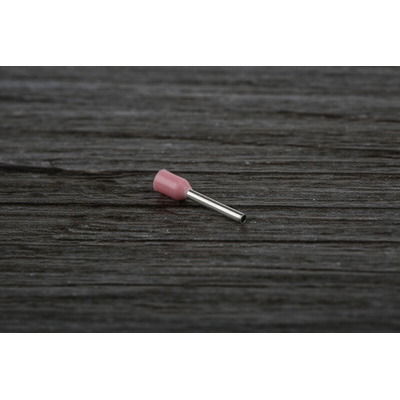

RS PRO Insulated Crimp Bootlace Ferrule, 8 mm Pin Length, 1.1 mm Pin Diameter, 0.34 mm² Wire Size, Pink

If you're crimping a stranded wire so you can make a good connection with screw or spring clamps, consider this RS PRO insulated crimp bootlace ferrule. Comprising a metal tube, it has an insulating pink plastic collar. These kinds of ferrules are most often found in consumer units and circuit breakers.

When you strip a multi-stranded wire and connect it to a screw terminal, you'll often find that the wire strands get displaced because of the force of the screw, and this can cause short-circuiting. If you use a bootlace ferrule, however, the strands aren't able to fan out but are held in place by the funnel's flared design, so you'll achieve a more reliable connection.

The insulated collar of this bootlace ferrule is made of nylon for reduced leakage, creepage and gas intrusion, and is colour-coded so you can identify it easily. The tube is made from highly conductive copper.

Features and Benefits

• Maximum wire size of 0.34 mm²
• Pin diameter of 1.1 mm
• Nylon insulation
• Pink
• Pin length of 8 mm
• Insulated
• Internal wire size of 24 AWG (American Wire Gauge)
• Length of 12.4 mm
• For ferrules with a wire size range of 0.5 to 6 mm² use crimping tool stock number 683-1605
• For ferrules with a wire size range of 10 to 25 mm² use crimping tool stock number 683-1614
• For ferrules with a wire size range of 0.5 to 16 mm² use crimping pliers stock number 464-482
• For ferrules with a wire size range of 35 or 50 mm² use crimping tool stock number 683-1617

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
