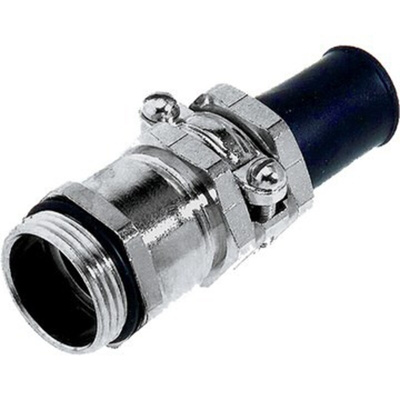

52001110+52003540, Lapp SKINDICHT Series Metallic Nickel Plated Brass Cable Gland, PG21 Thread, 18mm Min, 20mm Max, IP65, Кабельный ввод

Lapp Skindicht IP65 PG Strain Relief Gland

From Lapp, this Skindicht series cable gland has a robust brass construction, and features an inbuilt anti-kink protection. Able to be used with panels, junction boxes and machinery housing, this gland creates an environmentally sealed cable management solution, which also protects the cable connection from wear and tear.

With a simple screw on construction, this gland can be easily installed and reduce assembly time. It also features a variable clamping range, and provides optimum strain relief for cables with large outer diameters.

Features and Benefits

• Anti-Kink Protection
• IP65 Protection
• High Degree of Strain Relief
• PG Sizes
• Operating temperature of -20° and +80°C

Applications

Due to the glands high degree of protected against cable bend and kinking, this gland is ideal for use with moving machinery and electrical appliances under normal use. It is even suitable for portable devices. Its robust construction and environmental resistance also make it suitable for use in building sites.

Environmental

The gland is sealed up to IP65, which means it has an excellent degree of protection against dust and particle ingress, and is protected against water spray from all directions. This means the gland is suitable for use in harsh environments, and even some outdoor applications.

Supplied with

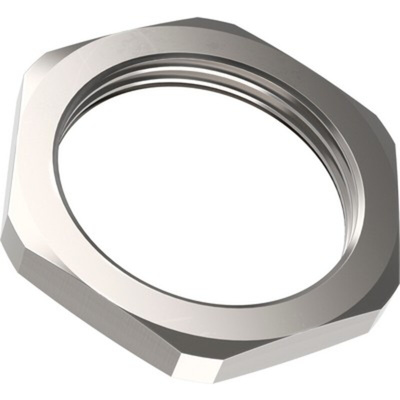

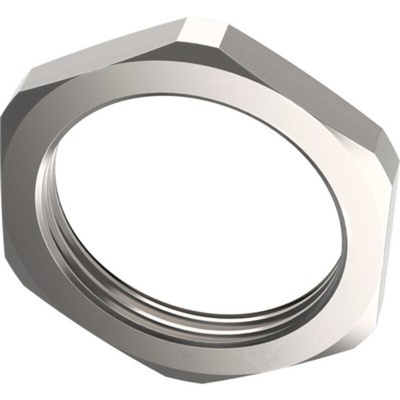

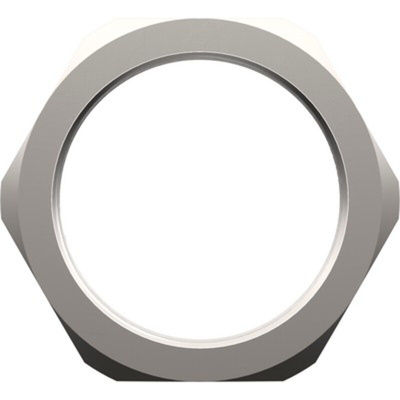

Lock nut

LAPP Cable Gland, Includes Locknut, Anti-Kink Protection - SKINDICHT Series - 52001110+52003540

Turn to this cable gland from LAPP to safeguard your systems from the elements. A robust nickel-plated brass construction makes it a sturdy choice when you need to protect cable connections from damage. It's a natural fit with junction boxes and electrical panels as part of your wiring management solution. The component comes with a locknut for ready installation. With a simple screw-on design, assembly is swift.

Features & Benefits

• Wide operating temperature range between -20°C and +80°C for use in challenging conditions
• Integral anti-kink feature keeps your cables from breaking under strain
• IP65 rating shows protection from dust and water jets in all directions

Applications

• Offices
• Electrical appliance maintenance
• Audiovisual installations
• Retail units

What size of cables can I use this cable gland with?

This unit fits cables with a diameter between 18 and 20mm for broad compatibility.

Datasheet

Cable Gland Selection Chart
