93.831.4250.0, Wieland ST18 Series Connector, 3-Pole, Female, Cable Mount, 16A, IP20

ST18 Cable Mount Plugs and Sockets

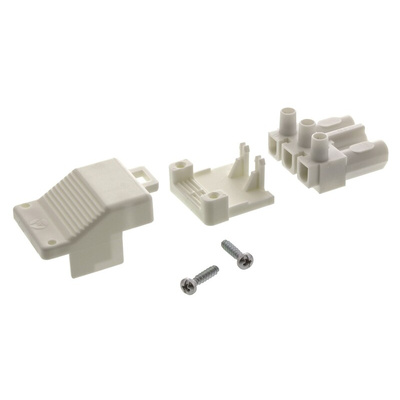

Three pole male and female connectors available as standard (single screw terminal), standard with cable strain relief (single cable diameter 6.5 - 8.3mm), standard with dual strain relief (two round cables 4.5 - 10mm or one flat cable) or double screw with dual strain relief (houses two separate screw terminals so that two cables may be terminated on one pole - ideal for lightchains, jumper connections or additional branches). Strain relief types include top cover.

Approvals

UL listed, CSA certified, OVE, SEV, N, UL, FI, VDE

Wieland GST Connector

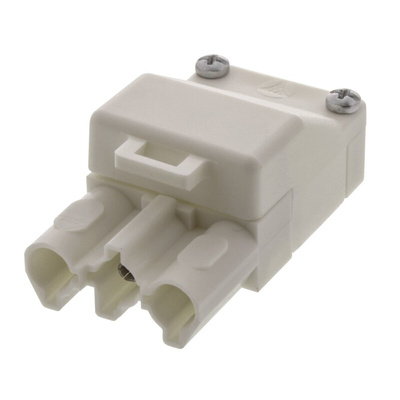

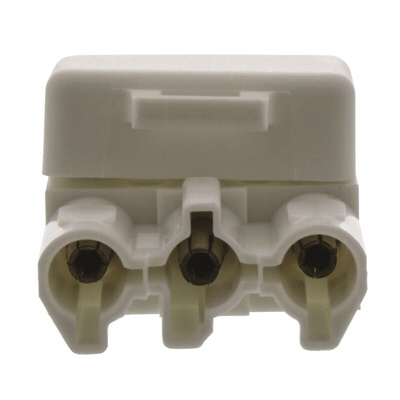

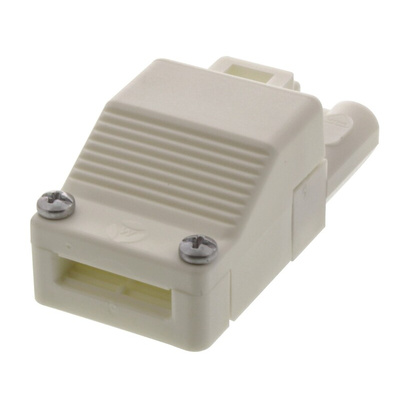

The Wieland GST connector is an ST18 series, female, 3-pole connector, cable mount, with strain relief. It has an electric rating of 250V and 16A. Strain relief includes a top cover. This versatile connector range is ideal for general wiring distribution. For new installations or rewiring existing layouts this modular, flexible design offers an efficient and space-saving solution. Contacts are polarised and shrouded, the leading earth contact making first and breaking last. This is available in white colour.

Features and Benefits

• 2.5mm² wire size
• Contact material is made of brass (tin-plated)
• Material flammability UL94V-2
• Operating temperature is 100°C
• Plugs and sockets of various types enable a wide range of configuration

Applications

• Construction sites
• Lighting application
• Office wiring
• Shop displays and exhibition stand wiring

Certifications

• CSA certified
• FI
• IP20 rated
• N
• OVE
• SEV
• UL listed
• VDE
• VDE 0110 Gr C

ST 18/ST 16 Compact Connectors

This versatile connector range is ideal for general wiring distribution but is especially suited to lighting applications. For new installations or rewiring existing layouts this modular, flexible design offers an efficient and space saving solution. Plugs and sockets of various types enable a wide range of configuration. Other applications include office wiring, shop displays and exhibition stand wiring. Contacts are polarised and shrouded, the leading earth contact making first and breaking last.

UL E101970
